5" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$507.89

Ex Tax: $507.89

Stock: In Stock
Model: RDDLZ-PBV-125
Weight: 1.00
SKU: RDDLZ-PBV-125

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

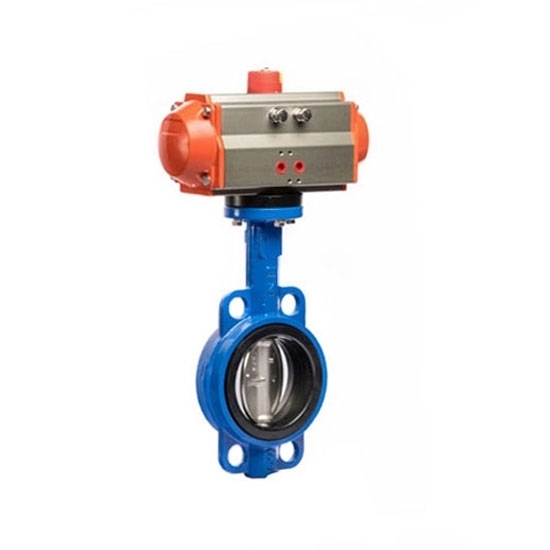

Industrial 5 inch pneumatic wafer butterfly valve comes with 125mm (DN125) port size for water flow working. The air actuated 2 way butterfly control valve is equipped with a pneumatic actuator and stainless steel disc, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-125
	Media	Water, Air, Gas, Oil, Liquid, etc.

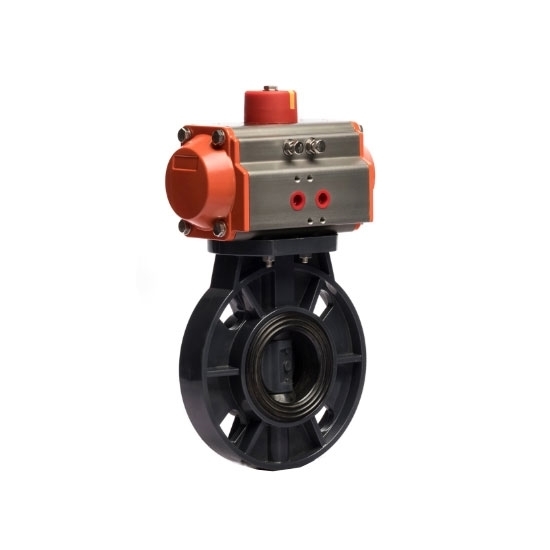

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	5 inch (DN125, 125mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT088D
	Actuator Type	Double Acting
	Bore Size	88mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
125	54.2	127	358	250	215	184	4-23

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
210	8-19	216	8-19	210	8-18	258	130	164	165	15	64	50	8.5	70	17	312	250

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT088D

Q	A	B	C	D	E	F	G	H	I
Φ50/Φ70mm	250mm	105mm	49.5mm	55.5mm	145mm	115mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: Why choose our pneumatic butterfly valve?

Pneumatic PVC butterfly valve has the advantages of simple structure, small size, light weight, low consumables, small installation size, and small 90° reciprocating rotation driving torque. It is used to cut, open and adjust the medium in the pipeline, and has good flow control and sealing performance.
Our air driven butterfly valve can not only transport air, water and oil, but also mud, leaving little liquid at the pipe mouth. Good sealing and good regulation are achieved at low pressures.
The butterfly disc is designed for streamline, and the loss of fluid resistance is small. Pneumatic butterfly valve can be said to be an energy-saving product.
The valve stem of the pneumatic butterfly valve is a through-rod structure, which has good comprehensive mechanical properties, corrosion resistance and wear resistance. When the pneumatic butterfly valve is opened and closed, the valve stem only rotates and does not move up and down, and the sealing is reliable.
The connection methods of pneumatic butterfly valve include flange connection, wafer connection and lug connection. The valve body material is PVC, stainless steel, cast iron. The air butterfly valve is driven by a pneumatic actuator, which can realize remote control and automatic operation.
