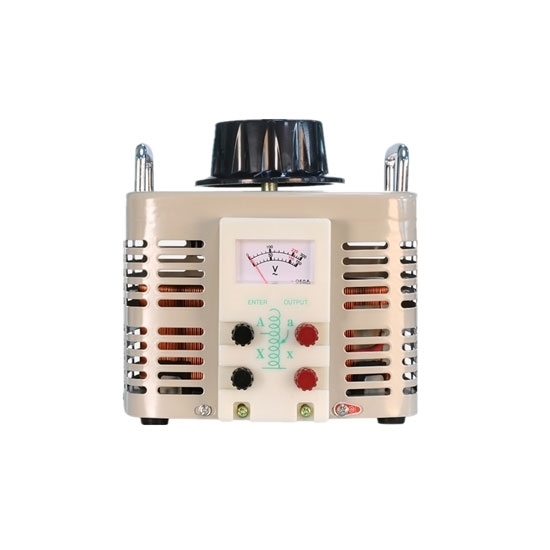

5 KVA Single Phase Variac Voltage Regulator

0 reviews • Write a review

from

$758.65

Ex Tax: $758.65

Stock: In Stock
Model: RDDLZ-VVR-5K
Weight: 1.00
SKU: RDDLZ-VVR-5K

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy cheap price variac transformer, capacity 5 kVA, input voltage 220V, manufacturer direct sales. Variac transformers are widely used to regulate the voltage of juicers, printers, TV sets, refrigerators and other equipment

Note: Support the split phase (L1,L2+N,G), Please contact us.

5 kVA Single Phase Variac Voltage Regulator Features

5 kVA and single phase.
Better protection, high quality workmanship.
16A rated output current and 0-250V rated output voltage, 220V rated input voltage.
Widely used in various power supply sites with frequency 50Hz.
High quality and safety variac voltage regulator.

5 kVA Single Phase Variac Voltage Regulator Specifications

Model		RDDLZ-TDGC2-5K
Phase No		1
Frequency		50/60Hz
Rated Input Voltage		220V
Rated Output Voltage		0-250V
Rated Capacity		5 kVA
Max Output Current		16A
Usage		SVC
Current Type		AC
Type		Contact type regulators
Weight		15.6 kg
Actual Output Current		(actual output voltage * rated current) / maximum output voltage
Dimension	L	330mm
	W	270mm
	H	310mm

5 kVA Single Phase Variac Voltage Regulator Detail

Tips: Installation and use

For newly installed or long-term unused voltage regulator, a 500V megger shall be used to measure the insulation resistance of coil to ground before operating it. It can be safely used only when the resistance is no lower than 5megohm, otherwise it shall be heated in advance. Heating treatment can be realized with charged drying method or drying in the oasthouse,. After heating treatment, check whether the fasteners are loose. If they are, tighten them.
The supply voltage should comply with the rated input voltage on the regulator nameplate.
The voltage regulator shall be well grounded to ensure safety.
Notice that the output current doesn’t exceed the rated value when using. If there is a short-term load, it can not exceed the requirement of 120%/1min, otherwise it may reduce the service life of voltage regulator or even burn the voltage regulator.
When using, the handle should be rotated evenly and slowly, so as not to cause the brush to damage or spark.
Check the service conditions regularly. If the brush is found to be excessively worn or damaged, replace a new one and polish the bottom surface of brush with placing a 0 sand paper under the brush, it can be used after well connection. The replaced copper graphite composite brush shall strictly comply with specification requirements.
