5μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$2.99

Ex Tax: $2.99

Stock: In Stock
Model: RDDLZ-FC-CBB61-050
Weight: 1.00
SKU: RDDLZ-FC-CBB61-050

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 Wire small capacitor for high speed fan, rated voltage 450V AC, capacitance tolerance 5%, ceiling fan capacitor dimension 47 x 19 x 31mm, 250V voltage can be customized, small size, flat bottom housing, easy to install.

Specification

Model: RDDLZ-FC-CBB61-050
Capacity: 5μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 47(W) x 19(L) x 31(H)mm
Certificate: CE, CQC

5μF Ceiling Fan Capacitor Wiring Diagram

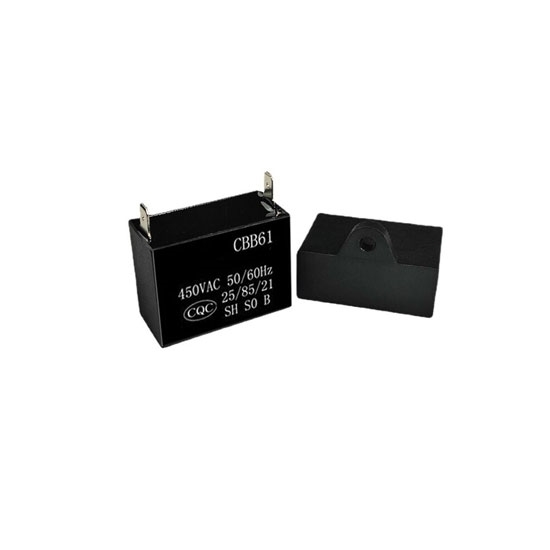

Ceiling fan capacitor details

Tips: Electric fan press the speed control key, why the motor buzzing sound?

The motor buzzing sound means that the motor can not start, remove the starting capacitor to measure whether the capacity has become small or failed or bulging, if so, replace the starting capacitor with a new one.
Turn the fan motor blade by hand to see if the blade rotation is very smooth, if it is very smooth, it means that the motor bearing is not rusty, if it does not turn, you need to disassemble the motor and clean the motor bearings and shaft. If the motor bearings are not rusty, you need to disassemble the motor, clean the bearings and the shaft, and add some oil to lubricate it after cleaning.
The above situation is not a problem, which is the motor winding between turns heat bad, or bearing jammed situation In this case, we can only replace the motor motor.
