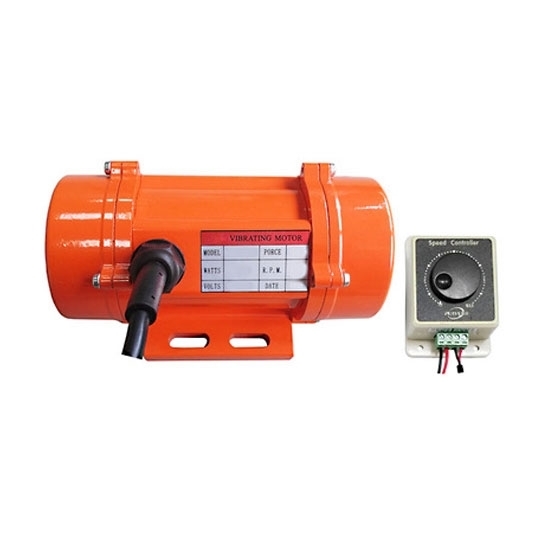

40W 24 Volt DC Brushed Vibrating Electric Motor With Controller

0 reviews • Write a review

from

$421.87

Ex Tax: $421.87

Stock: In Stock
Model: RDDLZ-DCVBM-5024
Weight: 1.00
SKU: RDDLZ-DCVBM-5024

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost 40W brushed vibration electric motor works at 24 volt DC voltage, 3000rpm, 1.6A current, Insulation class F and IP65 waterproof and dustproof, suitable for driving, providing conveying, screening, grading or compacting functions.

Specifications

Model	RDDLZ-MVB-50DC24
Volatge	24V
Current	1.6A
Power	40W
Speed	3000 rpm
Force	50 Kg, 0.5 kN
Frame No	8
Protection Level	IP65
Insulation Grade	F
Weight	6kg
Certificate	CE

Dimension (Unit: mm)

A	B	C	D	R	F	G	H	L	K	M	N	Cable Gland
36	93	178	113	84.5	10	9	43	80	24	33.5	82	M16*1.5

Internal Structure

Applications

RDDLZ 40W 24V micro brushed DC vibration electric motor is an ideal vibration source and excitation source for various vibration motors such as vibration conveyors, feeders, drying equipment, screening equipment, sand machines, vibration tables, etc., widely used in metallurgy, mining, coal, chemical, electric power, building materials, casting, abrasives, ceramics, glass, food and other industries.

Tips: What is the rated speed of the DC vibration motor?

The rated speed of a common DC vibration electric motor can vary depending on the manufacturer and the specific motor model. However, the common rated speeds for RDDLZ vibration motors are:

3000 rpm: Often used in applications where lower vibration frequencies are needed.
4500 rpm: A typical choice for moderate vibration intensity.
5000 rpm: Common for medium to high vibration applications.
7000 rpm: Often used for high-frequency vibrations in specific applications requiring intense force.

To determine the exact rated speed of a specific DC vibration motor, it’s best to check the motor's datasheet or manufacturer’s specifications.
