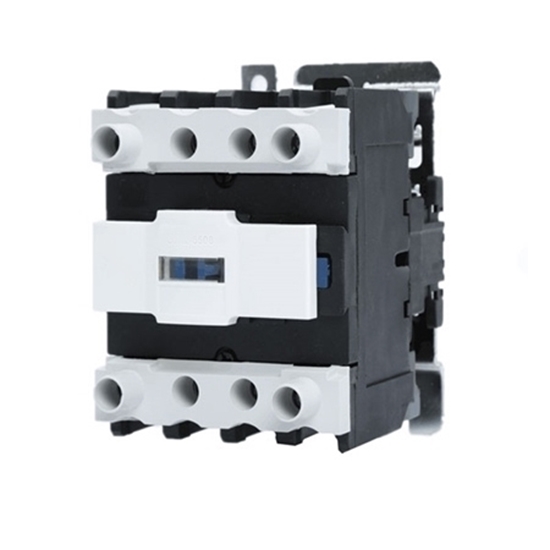

40 Amps 4 Pole AC Contactor 24V/110V/220V Coil

0 reviews • Write a review

from

$76.79

Ex Tax: $76.79

Stock: In Stock
Model: RDDLZ-ACCON-040
Weight: 1.00
SKU: RDDLZ-ACCON-040

Available Options

Short Description

Contact Form

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40A 4 pole contactor relay with 24V/110V/220V coil voltage, cost-effective, low price and easy to operate. As a control device for frequent or disconnected load circuits, AC contactor is electrically operated for remote operation and automatic control systems.

Specifications

Model		RDDLZ-CJX2-40
Rated Operational Current (AC-3)	380V	40A
	660V	34A
Conventional Heating Current		60A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	11kW
	380V	18.5kW
	660V	30kW
Operational Frequency (AC-3)	Electric Life	600 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	80
	Mechanical Life (10⁴ times)	800
Matching Fusing Model		RT16-20
Average Power Consumption (20℃) @ 50Hz	Pick-up	230VA
	Holding	32VA
Unit wight(kg)	4P (4N/O)	1.32
	4P (2N/O+2N/C)	1.37
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Rail Size		75mm
Class of Pollution		Class 3
Installation Category		Ⅲ

Dimenions (unit: mm)

4P (4NO) AC contactor

4P (2NO+2NC) AC contacor

Tips: Basic principle of 4 Pole contactor
When the coil is energized, the static iron core generates electromagnetic attraction, and the moving iron core is sucked. Since the contact system is linked with the moving iron core, the moving iron core drives the three movable contact pieces to operate at the same time, and the contacts are closed, thereby being connected. power supply. When the coil is de-energized, the suction force disappears, and the moving core interlocking portion is separated by the reaction force of the spring, so that the main contact is disconnected and the power is cut off.
