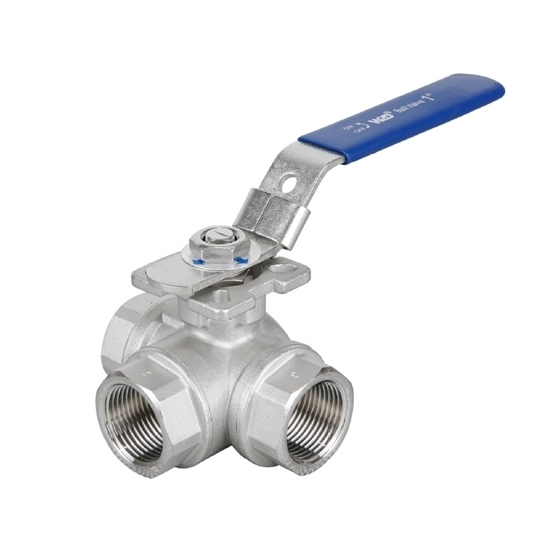

Low price 4 inch 3 way ball valve for sale online. 1000PSI, L port and T port, BSP, BSPT and NPT thread standard and SS 304/316 material are available. 100mm stainless steel ball valve is typically used in applications that require changing the direction of fluid flow.

Specifications

• Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
• Size: 4 inch (100mm)
• Connection Method: Thread
• Threaded Ends: BSP, BSPT, NPT
• Port: T Port/L Port
• Mounting Pad: ISO5211
• Working Pressure: 1.6MPa
• Temperature Range: -20℃～180℃
• Weight: About 13.73kg (T), 14.245kg (L)
• Material: 304/316 Stainless Steel

Dimension (Unit: mm)

Main Part Materials

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: What is a ball valve?

A ball valve is a type of valve that uses a ball-shaped disk (a "ball" ) with a hole or port in the center to control the flow of a fluid (such as water, oil, or gas) through a pipeline or other system. The ball is rotated using a handle or lever attached to the valve stem, which opens or closes the valve by allowing or blocking the flow of fluid through the port.

When the ball is rotated to the "open" position, the port aligns with the flow path, allowing the fluid to pass through the valve. When the ball is rotated to the "closed" position, the port is perpendicular to the flow path, preventing the fluid from passing through.

Ball valves are popular for their ease of operation and reliability, as well as their ability to provide tight shutoff and high flow capacity. They are used in a wide range of applications, from residential plumbing and industrial processing to oil and gas pipelines and even aerospace systems.
