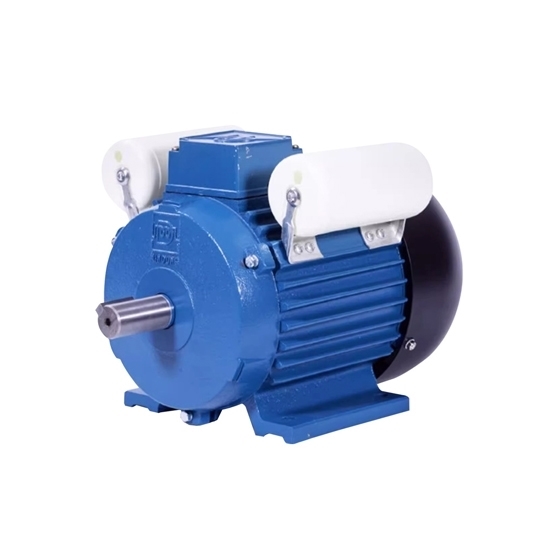

4 Hp (3kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$927.31

Ex Tax: $927.31

Stock: In Stock
Model: RDDLZ-SPM-3000
Weight: 1.00
SKU: RDDLZ-SPM-3000

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 3kW single phase motor is widely used in homes, offices, and stores. 4 hp 1 phase motor price is low. Optional speed 1500rpm/3000rpm, voltage 220V/110V/230V/240V and frequency 50/60 Hz. Single phase induction motor with two ac capacitors ( start capacitor and run capacitor) provides starting torque during operation.

Specifications

Model	RDDLZ-YL100L-2	RDDLZ-YL100L2-4
Rated Output	3.0kW (4hp)
Efficiency	80%	77%
Power Factor	0.98 COSφ	0.95 COSφ
Rated Speed	2820rpm	1420rpm
Rated Current	16.6A	17.79A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	2.0 times	1.8 times
Ts/Tn	2.2 times	1.7 times
ls/ln	91 times	110 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
100L	160	140	63	28	60	8	24	100	12	205	220	180	140	260	430

Details

Tips: Difference Between Single Motors and Three Phase Motors

There are two types of motors: single phase motors and three phase motors. Compared with three phase motors, single phase motors require less maintenance and can last longer. These motors are usually used in devices and equipment requiring lower horsepower, or when the efficiency of using three phase motors is low. The single phase motor has a similar structure to the three-phase motor, but the biggest difference between the two motors is that the single phase motor has only one-phase power for the stator. So it is called a single phase motor.
