4" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$716.89

Ex Tax: $716.89

Stock: In Stock
Model: RDDLZ-EBV-100WF
Weight: 1.00
SKU: RDDLZ-EBV-100WF

Available Options

Short Description

Power Supply

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

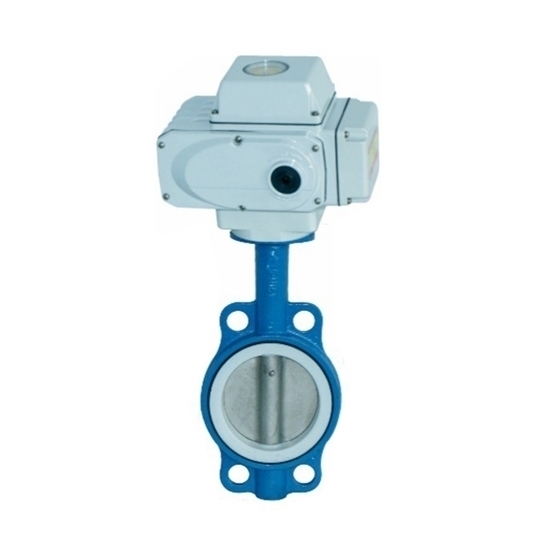

Factory price 4 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-100WF
	Media	Water, Air, Gas, Oil, Liquid, etc.

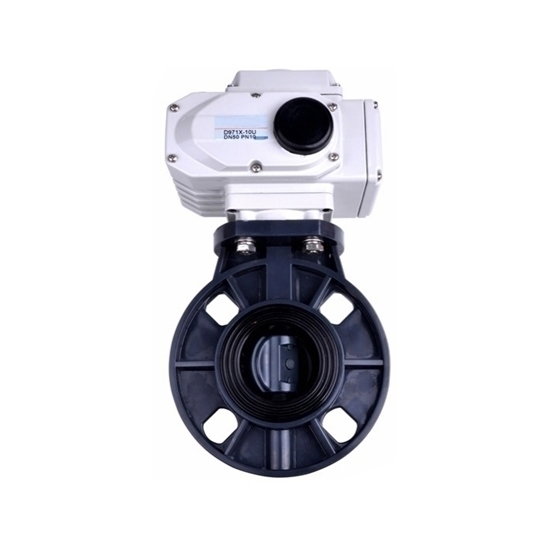

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	4 inch (DN100, 100mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
100	52	114	344	198	185	156	4-24.5

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
175	8-19	190.5	8-19	180	8-18	228	102.5	135	135.5	13	54	40	8.5	70	17	295	198

Details

Tips: What are the components of electric actuated butterfly valve?

Electric actuated butterfly valve is mainly composed of valve body, sleeve, valve disc, valve stem and other parts. There are orifices on the sleeve and the valve disc, and the flow and flow can be adjusted through the valve disc on the valve seat. Equipped with electric angle travel actuator, it can be realized and controlled automatically. Electric butterfly valves are widely used to regulate the flow of water supply pipelines and oil pipelines.

The internal heat generated by the motor operation of the electric butterfly valve will provide thermal protection and stop the operation of the electric butterfly valve; since the motor can only output torque after multi-stage deceleration, the operation speed is not very fast, and it is not suitable for some fast switching. The contradiction between high torque and high speed is difficult to resolve.
