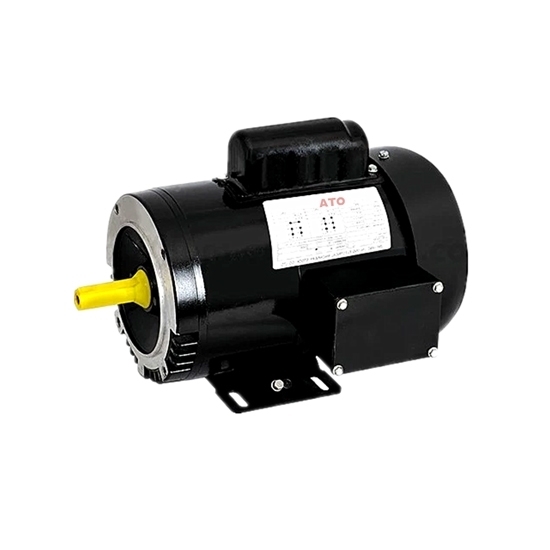

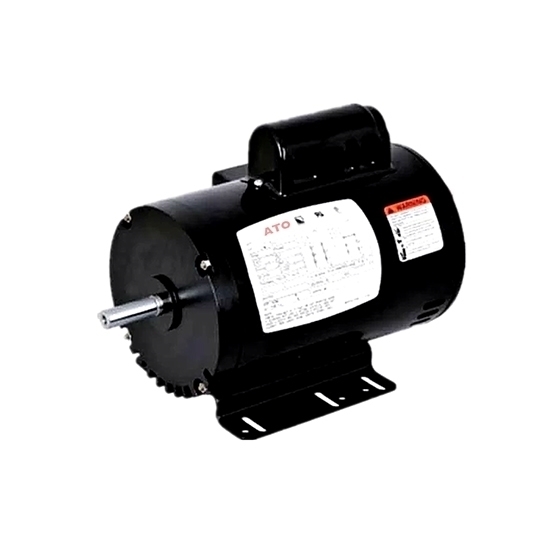

2 Hp NEMA AC Induction Motor, Split Phase 115/230V, ODP/TEFC

0 reviews • Write a review

from

$661.43

Ex Tax: $661.43

Stock: In Stock
Model: RDDLZ-IM-RS22
Weight: 1.00
SKU: RDDLZ-IM-RS22

Available Options

Short Description

Enclosure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 2 hp 2 pole split phase AC induction motor with low cost, has a operating speed of 3450 rpm, voltage of 115/ 230V AC, ODP or TEFC enclosure type, suitable for general purpose applications such as pumps, fans, compressors.

2 hp AC Induction Motor Specification

Basics	Model	RDDLZRS22D02	RDDLZRS22T02
	Enclosure	ODP	TEFC
	Type	General Purpose Asynchronous Motor
	Item Weight	51 Ibs
	Motor Length	14.6 inch
	Frame	145T Frame
	Design	NEMA Design B
	Certification	CE, UL
	Motor Material	Roll Steel
Technical Parameters	Service Factor	1.15
	Horsepower	2 hp
	Rated Frequency	60 Hz
	Phase	Split Phase
	Pole	2 pole
	Voltage	115/230V AC
	Full Load Amps	18/9A
	Speed	3450 RPM
	Efficiency	76%
	Duty	Continuous
	Isulation Class	Class F
	Protection Class	IP54/ IP55
	Mounting Method	Foot Mounted
Environment	Ambient temperature	-15℃≤θ≤40℃
	Altitude	Altitude should be lower than 1000 meters above sea level

2 hp AC Induction Motor Dimension

Unit: inch

Frame Size	AB	BA	Max A	Max B	C	D	E	2F	H	N	N-W	O	P	R	S	U	Min V	Min ES	Min AA
145T	5.6	2.25	7	6.18	14.6	3.5	2.75	5	0.34	2.46	2.25	6.7	7.08	0.771	0.188	0.875	2	1.41	3/4

NEMA AC Induction Motor Connection Diagram

Details

Tips: Characteristics of RDDLZ AC Induction Motor

RDDLZ AC induction motors use auxiliary coils and capacitors not only in starting but also during operation. Although the starting torque is not very large, it has simple structure, high reliability and efficiency.
Can operate continuously.
The rated speed of the motor will also change with the load.
Used for the application occasions requiring no speed brake.
Use E-category insulation grade, while UL mode motor uses A type.
Single-phase AC induction motors and three-phase AC induction motors are available on RDDLZ.com.
When the single-phase induction motor is operating, torque opposite to the revolving direction will be generated. Therefore, it is impossible to change direction in a short period. Therefore, it is required to change its revolving direction when the motor fully stops.
