2-1/2" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$529.09

Ex Tax: $529.09

Stock: In Stock
Model: RDDLZ-EBV-65WF
Weight: 1.00
SKU: RDDLZ-EBV-65WF

Available Options

Short Description

Power Supply

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Lightweight electric actuated flanged butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-65WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2-1/2 inch (DN65, 65mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy

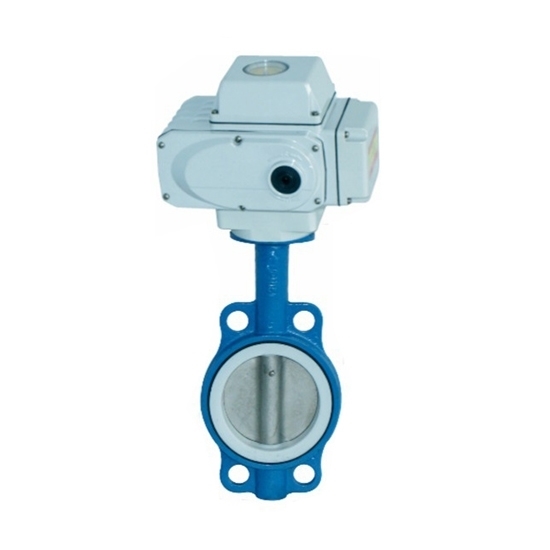

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
65	44.5	89	300	160	136	118	4-26.5

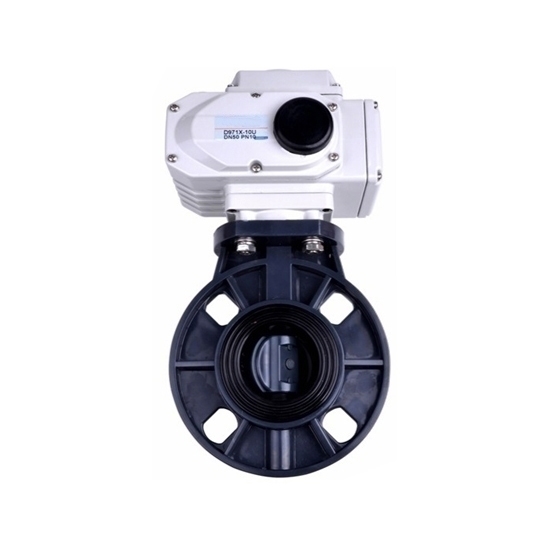

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
140	4-19	139.5	4-19	145	4-18	180	69.5	120	113	13	46	31	6.5	50	14	241	160

Details

Tips: Advantages of electric butterfly valve

The electric butterfly valve is convenient and quick to open and close, labor-saving, small fluid resistance, and can be operated frequently.
It has a simple structure, small size and light weight.
It can transport mud, with the least amount of liquid accumulated at the pipe mouth.
It can achieve good sealing under low pressure.
It has good adjustment performance.
