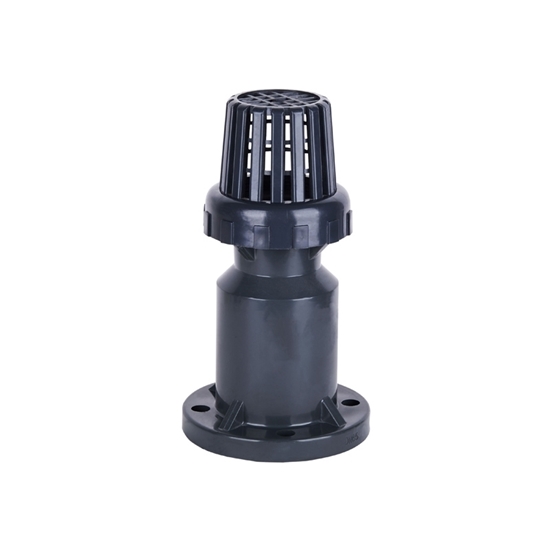

1" Plastic Foot Valve, UPVC Non Return Valve

0 reviews • Write a review

from

$60.38

Ex Tax: $60.38

Stock: In Stock
Model: RDDLZ-PFV-25
Weight: 1.00
SKU: RDDLZ-PFV-25

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This foot valve cannot be used for drinking water.

1 inch UPVC foot valve is a plastic check valve, designed for use in fluid handling applications to prevent backflow and maintain fluid pressure. DN25, flange connection, 16kg nominal pressure, durable and corrosion-resistant, suitable for water treatment, agriculture, chemical processing, etc.

Specifications

Model: RDDLZ-H42F-10S
Port Size: 1 inch, DN25
Nominal Pressure: 16kg
Type: Foot Valve
Body Material: UPVC
Connection Form: Flange
Weight: 0.6kg
Suitable Medium: Water

Features

The foot valve is mainly used in pumps and other mechanical equipment for slurry treatment. It is usually installed at the bottom of the pump's underwater suction pipe to limit the return of the liquid in the pump pipe to the water source.
There are many water inlets and ribs on the foot valve cover, equipped with a screen to prevent impurities from flowing in and reduce clogging.
With good sealing performance, small pressure loss and strong hydraulic performance, the
UPVC foot valve is an ideal water pump supporting facility for petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage, irrigation industries, etc.

Dimension (Unit: mm)

	Nominal Diameter	DN25
	D1	115
	D2	85
	L	189
	h	16
	N-Φ	4-Φ17x20

Applications

Foot valve is a type of valve that is used in pumping systems to prevent the backflow of fluids. UPVC foot valve is used in various applications such as irrigation, water supply, and other fluid handling systems where backflow prevention is necessary.

Tips: UPVC Foot Valves Applications

Water supply: UPVC foot valves are commonly used in water supply systems to prevent backflow and ensure the flow of clean water.
Irrigation: UPVC foot valves are used in irrigation systems to prevent the loss of prime and maintain the flow of water from the source to the irrigation equipment.
Chemical handling: UPVC foot valves are ideal for handling chemicals and corrosive fluids, as they are resistant to chemical corrosion and degradation.
Industrial applications: UPVC foot valves are used in various industrial applications such as processing plants, chemical plants, and wastewater treatment facilities.
Aquaculture: UPVC foot valves are commonly used in aquaculture systems to prevent the backflow of water and maintain the flow of clean water to aquatic animals.
Swimming pools and spas: UPVC foot valves are used in a swimming pool and spa systems to prevent backflow and maintain the flow of clean water.
