1/8 Hp Piston Air Motor, 1100 Rpm, 202 L/min

0 reviews • Write a review

from

$466.98

Ex Tax: $466.98

Stock: In Stock
Model: RDDLZ-DAM1
Weight: 1.00
SKU: RDDLZ-DAM1

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost piston air motor with starting torque 0.686 Nm, stopping torque 1.18 Nm, three mounting types for selection. The pneumatic piston motor has the advantages of simple structure, small size, light weight, large horsepower, easy operation and convenient maintenance.

Specification

Model	RDDLZ-DAM1
Power	1/8 hp
Gear ratio	1:1
Rated speed	1100 rpm
Rated torque	0.637 Nm
Max. no-load speed	2200 rpm
Air consumption	202 L/min
Starting torque	0.686 Nm
Stopping torque	1.18 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

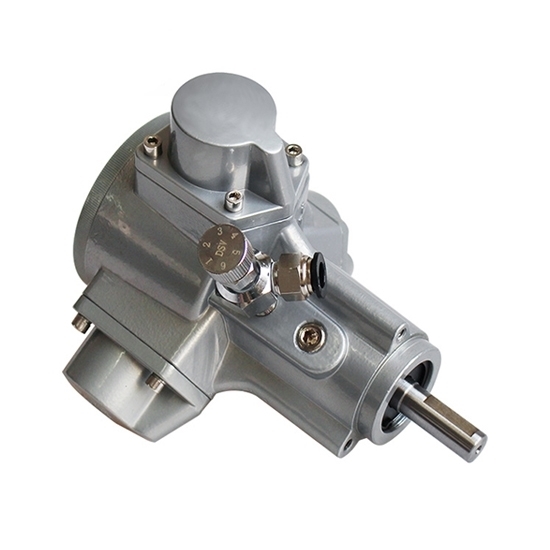

Basic type

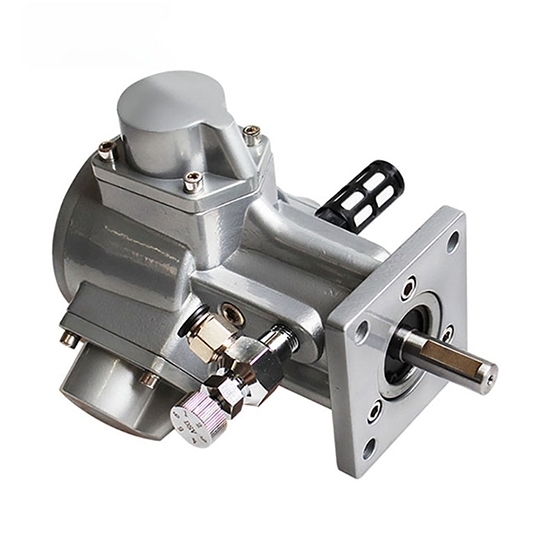

Flange type

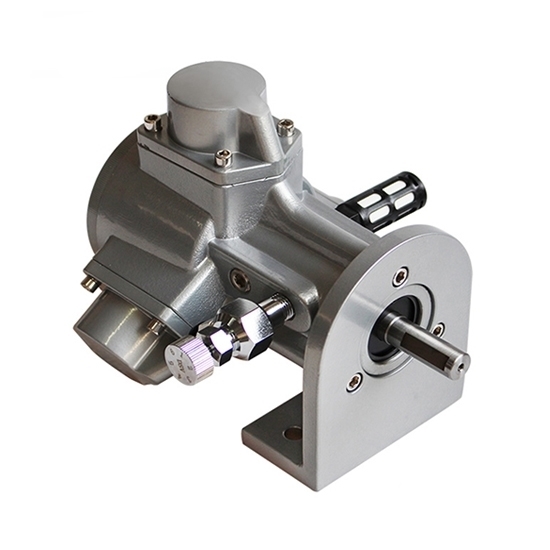

Foot type

Model	Dimension (mm)
Model	A1	A2	A3	A4	B	C	C1	D	E	F	G	H	J	M	N	M1	N1	M2	N2	Q	Q1	P
RDDLZ-DAM1	168	135	122	140	126	12	55	10	2	32	M5	42h7	25	74	57	100	70	50	30	7	9	71

Details

Tips: What is Piston Air Motor?
Piston air motor is a kind of air motor that converts the linear motion of several pistons into rotary motion through a crank or a swash plate. According to pneumatic piston motor's different structure, it can be divided into two types: radial piston type and axial piston type. Piston air motors are suitable for occasions with low speed and high torque. Its gas consumption is not small, and there are many components and the price is high. Piston type air motor are mainly used in mining machinery, and which can also be used as drive motors for conveyor belts.
