1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$105.49

Ex Tax: $105.49

Stock: In Stock
Model: RDDLZ-ANGLE-15
Weight: 1.00
SKU: RDDLZ-ANGLE-15

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1/2 inch pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN15
Pipe Thread Type: 1/2 inch (DN15), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

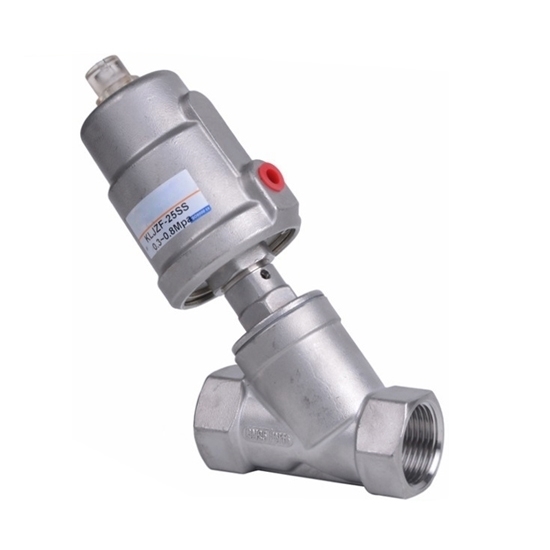

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
50	62	33.5	ZG1/8"	ZG1/2"	126	137	68	13

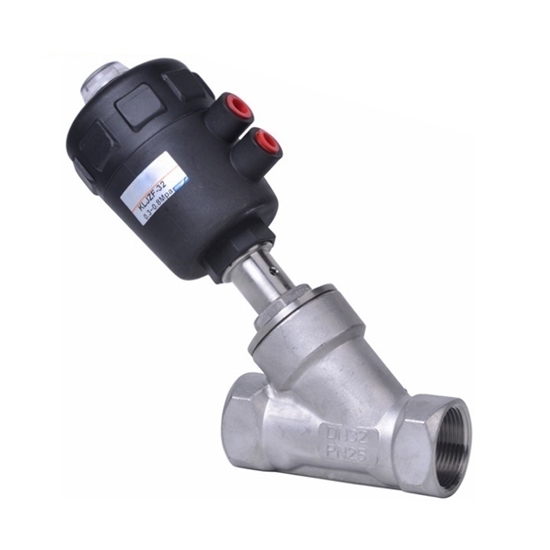

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
50	ZG1/2"	85	170	16	64	44	112	140

Tips: Advantages of pneumatic angle seat valve

With valve open or closed position display.
External pneumatic pilot for increased service life and maintenance-free.
There is a self-adjusting sealing gland between the overflow port and the slider, which can improve the sealing performance.
The valve body is an angle seat structure that can achieve large flow, compact structure and fast response.
