Wireless Pirani Vacuum Gauge, Pa/mBar/Torr, Analog Output

0 reviews • Write a review

from

$895.38

Ex Tax: $895.38

Stock: In Stock
Model: RDDLZ-CX-PRN12
Weight: 1.00
SKU: RDDLZ-CX-PRN12

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital Pirani gauge is an instrument used to measure vacuum pressure within the range of 1.0x10-1 ~ 1.0x105 Pa (Air, Nitrogen). Wireless vacuum gauge comes with analog voltage output, Pa/mBar/Torr display, 100ms response time, ideal for analytical instruments, vacuum furnaces, vacuum packaging vacuum coating, and low vacuum pump testing.

Features

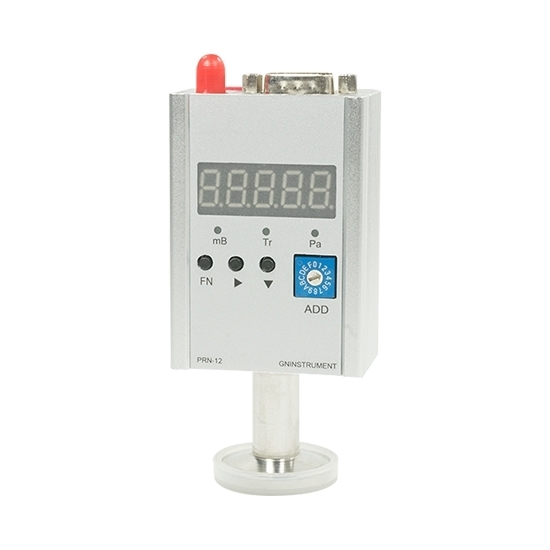

Digital Pirani gauge features a high-brightness LED segment display with selectable units (Pa, mBar, Torr), along with smart function keys for calibration and control point settings.

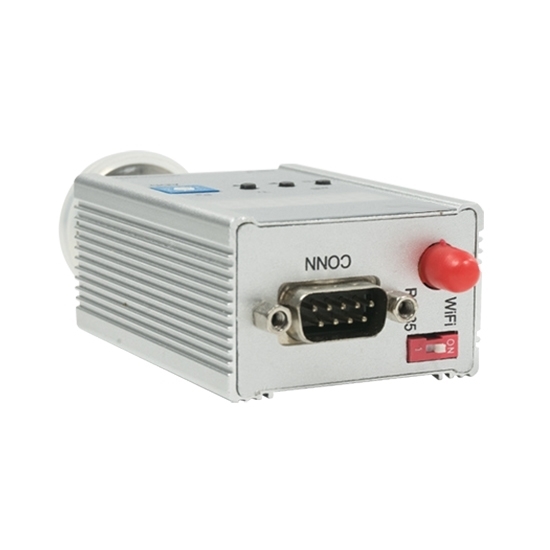

It integrates wireless data transmission, analog output and RS485 communication (contact us), making it suitable for networking and remote monitoring with 16-bit code address settings.

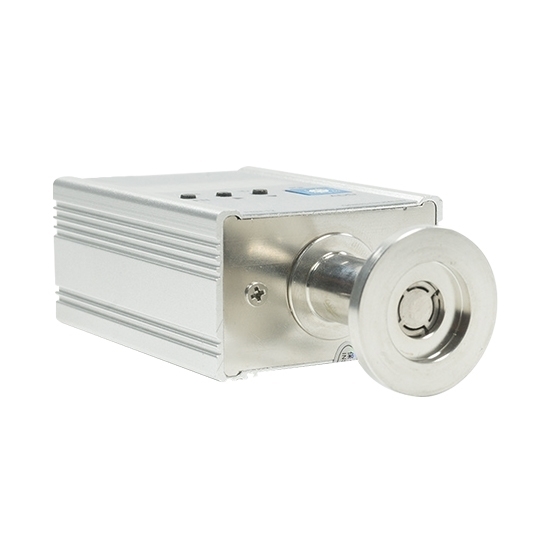

Wireless Pirani vacuum gauge has a metal enclosure for excellent electromagnetic interference protection and uses stainless steel measuring chambers, ensuring high cleanliness and compatibility with vacuum environments.

Specifications

Model	RDDLZ-CX-PRN12
Measuring Range	1.0x10^-1 ~ 1.0x10⁵ Pa (Air, Nitrogen)
Accuracy	1.0x10^-1 ~ 10⁴ Pa: +/-15%; 1.0x10⁴ ~ 1.0x10⁵ Pa: +/-50%
Repeatability	1.0x10^-1 ~ 1.0x10³ Pa : +/-2%; 1.0x10³ ~ 1.0x10⁵ Pa: +/-5%
Withstand Pressure (Absolute Pressure)	1.0x10⁵ Pa
Response Time	100ms
Filament Baking Temperature	Up to 150℃ (up to 250℃ for Metal Vacuum Flange)
Ambient Temperature (Operating Temperature)	0℃ ~ +45℃
Ambient Temperature (Storage Temperature)	-40℃ ~ +75℃
Ambient Humidity (Operating Humidity)	5... 85%, Non-condensing
Signal Output	(Default) Analog Output +2.286V ~ +10.0V, Minimum Impedance 10Ω
Signal Output	RS485 (Non-isolated), Baud Rate 9600 bps; Connected to Vacuum Controller WGC150 (RS485 output is not included. Please contact us if you need it or other outputs.)
Power Supply	+24V DC (±20%)/1.5A, via DBSub9 Plug
Maximum Power Consumption	2.0W Max.
Protection Level	IP40, IEC529
Vacuum System Connection	DN 16 ISO-KF (Default); Others (Contact Us)
Material In Contact With Vacuum	SS304.SS316L, Kovar 4J50, Filament, Feed-Through Glass

Dimension (Unit: mm)

Pin Definition

D-SUB 9 Core Plug (Female) Wiring, Welding Side

Communication with Computer

The PRN12 vacuum gauge is connected to the computer via a plug, cable and converter.
Please install the GAUGE READER 3.0 software on regular WIN XP, WIN7, WIN8 and WIN10.

Applications

Tips: What is a digital Pirani vacuum gauge?

A digital Pirani vacuum gauge is an advanced instrument used to measure vacuum pressure in various industrial and scientific applications. It combines the traditional Pirani gauge's principles with digital technology to provide accurate and reliable pressure readings.

The Pirani gauge operates based on the measured thermal conductivity of the gas. It consists of a heated filament and a temperature sensor. As the filament heats up, the thermal conductivity of the surrounding gas affects the filament's temperature, which in turn influences its electrical resistance. This change in resistance is then used to determine the gas pressure.

In a digital Pirani vacuum gauge, this measurement process is enhanced by digital electronics. The analog signal from the filament is converted to a digital format using an analog-to-digital converter (ADC). A microcontroller or digital signal processor processes this digital signal to produce precise pressure readings displayed on a digital interface. The digital nature of the gauge allows for easy calibration, data logging, and integration with computer systems for automated control and monitoring.

Digital Pirani gauges are favored for their accuracy, stability, and ease of use, making them suitable for applications in semiconductor manufacturing, vacuum research, and other fields requiring precise vacuum measurement.
