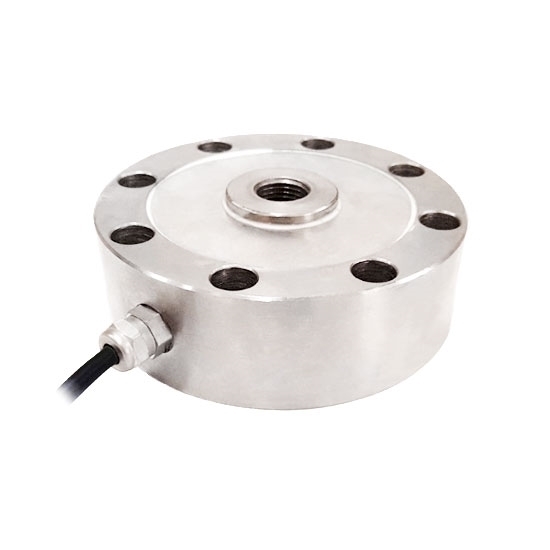

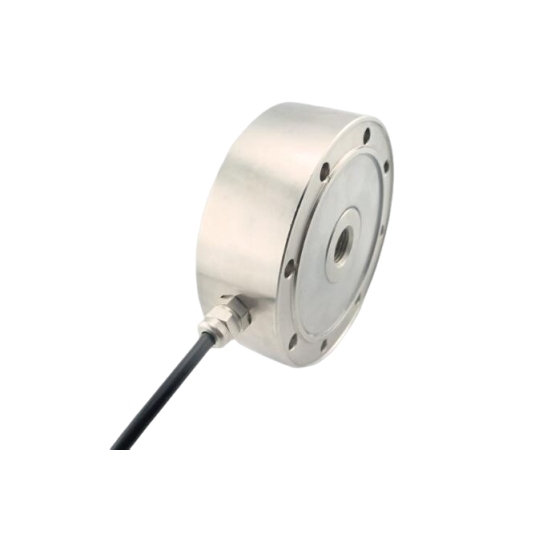

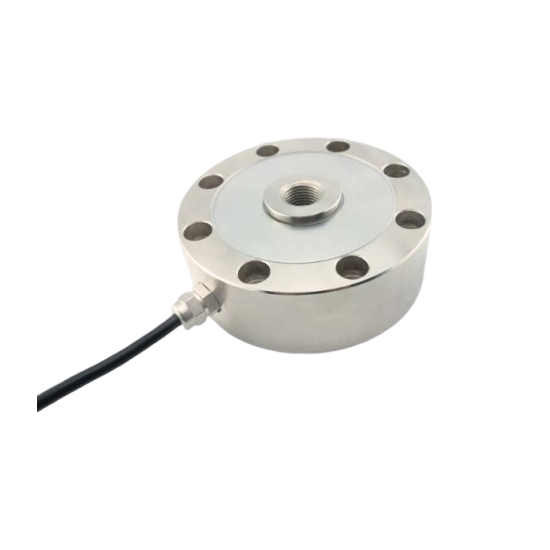

Tension/Compression Load Cell, Low Profile, 500kg/30 Ton To 100 Ton

0 reviews • Write a review

from

$145.28

Ex Tax: $145.28

Stock: In Stock
Model: RDDLZ-LC-P02
Weight: 1.00
SKU: RDDLZ-LC-P02

Available Options

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

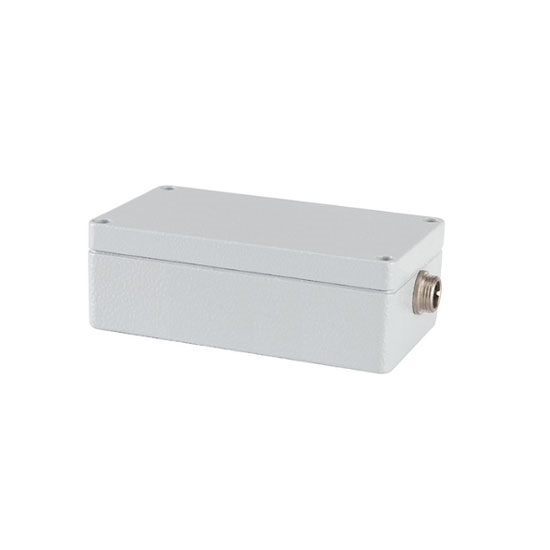

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 500kg, 5 ton, 30 ton, 50 ton to 100 ton.

Specification

Model	RDDLZ-LCST-TJH-4B
Shipping Weight	1.5~60kg
Capacity Range *	500 kg~200 ton

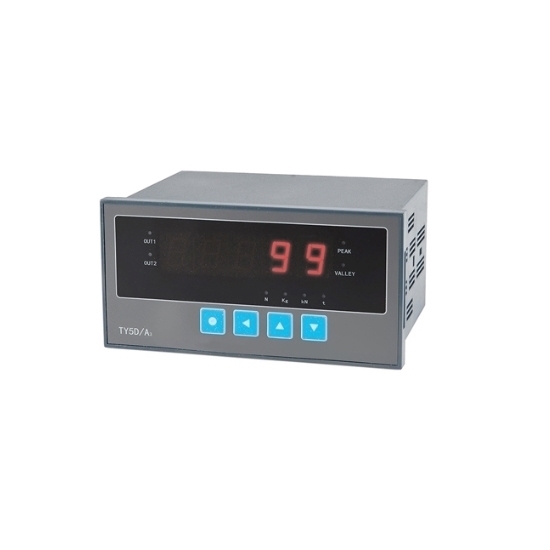

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω or 750±15Ω
Output Impedance	350±3Ω or 700±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5~10V
Response Time	3-4ms
Material	Alloy steel or stainless steel
Protection Class	IP67
Cable Length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High-Quality Alloy Steel: Ensures durability, high strength, and resistance to wear and tear for long-lasting performance.
High Measurement Accuracy: Offers precise and stable measurements for reliable force detection.
Waterproof Connector: Uses a waterproof connector to reduce mechanical shock and ensure secure, stable signal transmission.
Easy Installation: Designed for easy installation with convenient mounting holes and straightforward setup.
Wide Range of Applications: Suitable for various industrial uses, including force measurement in manufacturing, weighing, and testing systems.

Dimension

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	ΦF	M	H	E
500kg~7 ton	105	88.9	6.5	32	M16*1.5	37	34
10~25 ton	125	101.6	8.5	39	M32*1.5	52	48
30~50 ton	145	116.8	10.5	50	M40*1.5	58	54
60~100 ton	205	162	12.5	80	M60*2	85	78
200 ton	296	245	22	136	M90*3	105	100

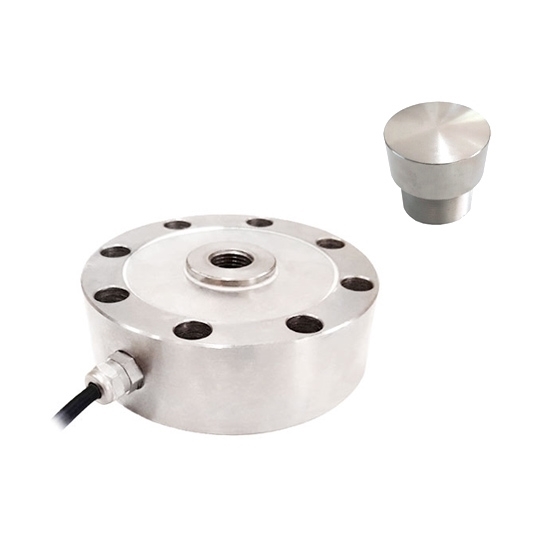

Accessories dimension (accessories can be purchased in drop-down lists)

Capacity	Compression head dimension (mm)
Capacity	Φ	L1	L	M	SR
500kg~7 ton	31	13	28	M16*1.5	80
10~25 ton	38	24	51	M32*1.5	120
30~50 ton	50	32	62	M40*1.5	200
60~100 ton	80	42	80	M60*2	280

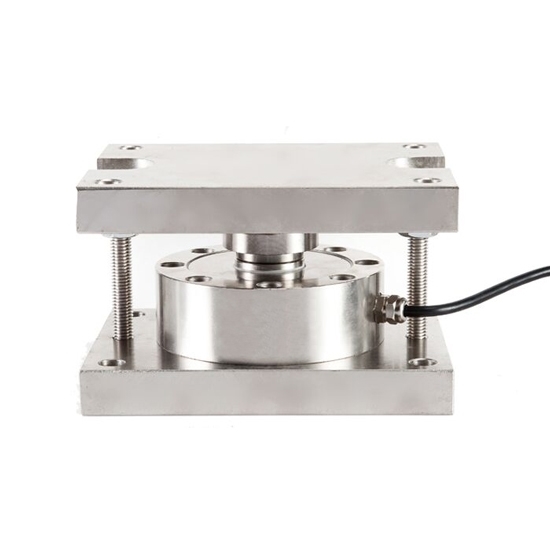

Load cell module dimension **(*module needs to be purchased separately)**

Capacity	Dimension (mm)
Capacity	L	L1	A	A1	H	H1	Φ
500kg~7 ton	160	135	115	90	100	20	11
10~25 ton	200	160	160	125	145	25	13
30~50 ton	240	200	180	135	175	30	17
60~100 ton	300	260	240	200	240	35	17

Wiring Method

Application

Tips: What kind of maintenance does the Tension/Compression Load Cell require?

Regular maintenance includes checking the load cell for signs of mechanical wear, corrosion, or damage. It’s important to inspect the connectors, wiring, and mounting system to ensure everything is secure. Periodic recalibration should also be done to ensure accurate measurements, especially after heavy use or exposure to extreme conditions.
