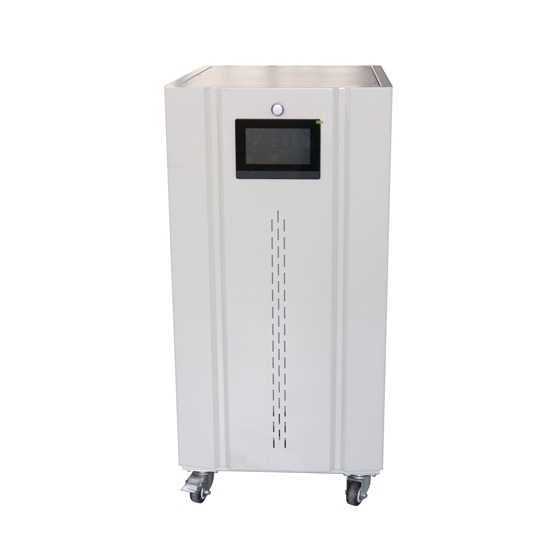

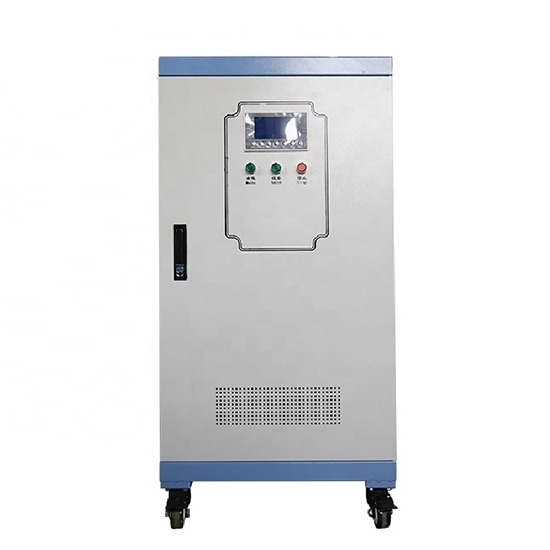

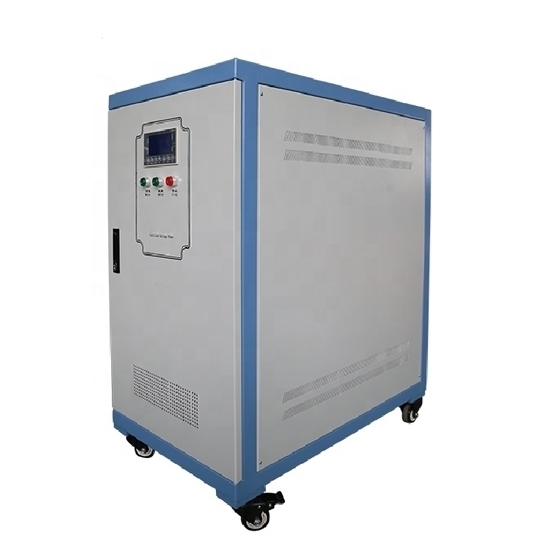

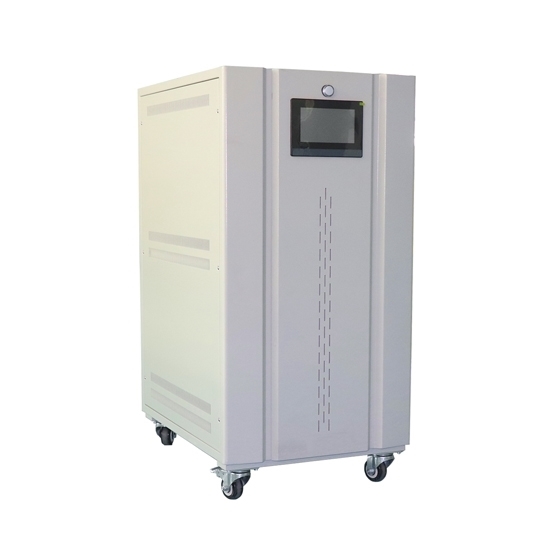

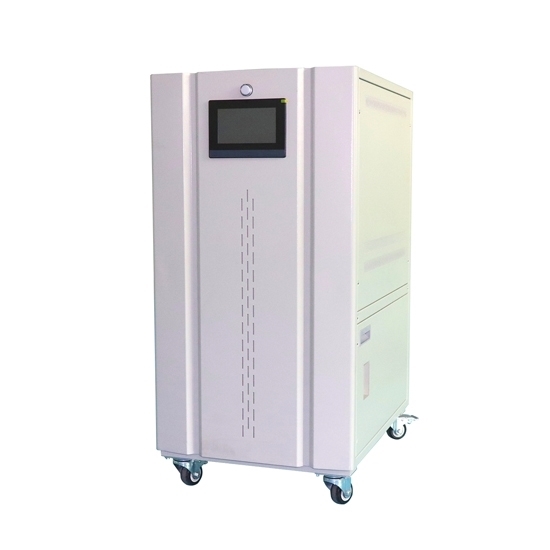

40 kVA Voltage Stabilizer Features

• Default three phase 4-line 175V-265V (phase voltage) 304V-456V AC (line voltage) of wide input voltage range, 380V output
• High efficiency, large capacity, no waveform distortion, stable voltage regulation
• The high accuracy of the output voltage (output voltage can be customized)
• Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securities, and other occasions where all need normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.

40 kVA Voltage Stabilizer Specifications

3 Phase Voltage Stabilizer Schematic Diagram

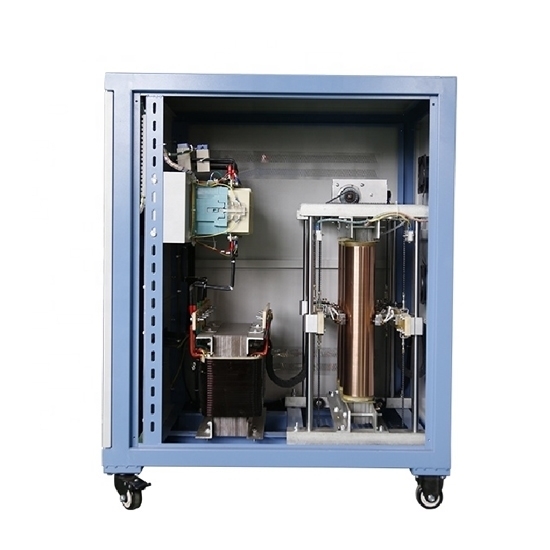

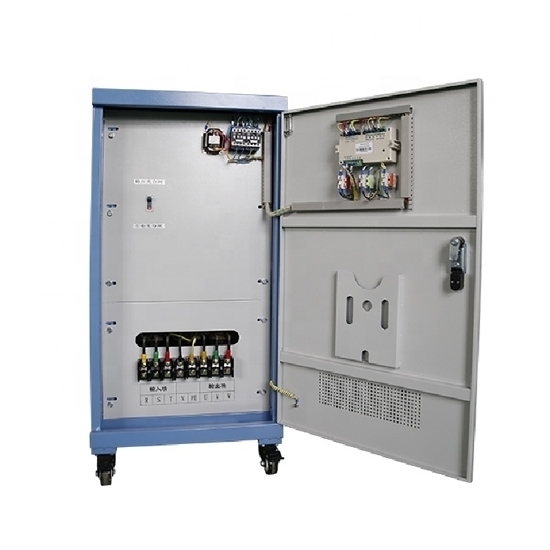

Industrial Voltage Stabilizer Inner Detail

Tips:

In fact, the three-phase voltage stabilizer connects the three voltage stabilizing units with the "Y" connection method, and then uses the control circuit board and the motor drive system to control the voltage regulating transformer, so as to achieve the function of stabilizing the output voltage.

If the sliding arms of the three voltage-regulating transformers are driven by one motor, the voltage-regulating mode is the unified voltage stabilizer. If the sliding arms of the three voltage-regulating transformers are independently adjusted by three motors, the three-phase split regulation voltage stabilizer is the same as the single-phase voltage stabilizer.

In the process of voltage regulation, the regulator is realized by moving the carbon brush to change the number of contact coil turns. Then, during the adjustment, it is required to keep contact with the coil at all times, otherwise, the power will be cut off.
