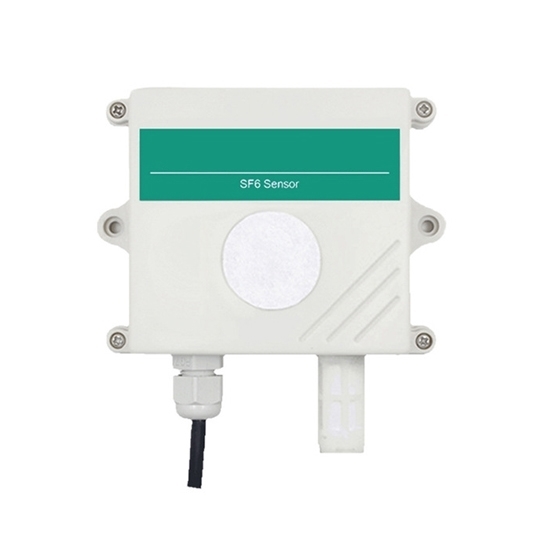

Sulphur Hexafluoride (SF6) Gas Sensor, RS485/4-20mA/0-5V/0-10V

Sulphur Hexafluoride (SF6) Gas Sensor, RS485/4-20mA/0-5V/0-10V
Sulphur Hexafluoride (SF6) Gas Sensor, RS485/4-20mA/0-5V/0-10V
0 reviews • Write a review
from
$399.89
Ex Tax: $399.89
  • Stock: In Stock
  • Model: RDDLZ-GS-3002
  • Weight: 1.00
  • SKU: RDDLZ-GS-3002

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

SF6 sulphur hexafluoride gas sensor with RS485/4-20mA/0-5V/0-10V four communication protocols available. 0~500ppm, 0~1000ppm SF6 measurement range. It can be used in harsh environments such as industrial plants/traffic tunnels/energy and electric power/oil and petrochemicals/coal mine tunnels/gas extraction and other industrial and agricultural environments (pollution emission monitoring, fruit tree gardens, agricultural greenhouses of farms, floriculture, laboratories, etc.) for health and safety monitoring.

Features

  • Four-core waterproof shielded cable, waterproof and oil-proof, strong pit interference ability signal transmission stability.
  • High measurement accuracy, up to ±3% FS, repeatability up to 2% or less.
  • RS485 communication interface standard ModBus-RTU communication protocol, address, baud rate can be set, the communication distance up to 2000 metres.
  • Optional high-quality OLED display, the site can directly view the value.
  • The field power supply adopts 10~30V DC wide-voltage power supply, which can be adapted to a variety of DC power supply on site.
  • The product adopts wall-mounted waterproof shell, easy to install, high protection level can be applied to the harsh field environment.

Specifications

ModelRDDLZ-GS-VMS-3002
Power Supply10~30V DC
Average Power Consumption0.95W
Output SignalRS485/4-20mA/0-5V/0-10V (optional)
SF6 Resolution1ppm
Maximum Allowable SF6 Error±10%
SF6 Measurement Range0~500ppm/0~1000ppm (optional)
Zero Drift±3ppm
Operating Temperature-20~50°C
Operating Humidity15~90%RH, no condensation
Stability≤2% signal value/month
Response Time≤30s
Preheat Time≥30min
Repeatability≤3% kPa
Pressure Range90~110 kPa


Dimension (Unit: mm)



 System Framework Diagram

Installation

Application

Tips: Hazards of Sulphur Hexafluoride (SF6)

Health Risks:

  • Asphyxiation: SF6 is a dense gas and can displace oxygen in confined spaces, leading to a risk of asphyxiation. In high concentrations, it can cause dizziness, unconsciousness, and even death due to lack of oxygen.
  • Inhalation: Although SF6 is generally considered non-toxic, inhaling high concentrations can cause respiratory issues and potential harm due to oxygen displacement.

Environmental Impact:

  • Greenhouse Gas: SF6 is a potent greenhouse gas with a global warming potential (GWP) 23,500 times greater than carbon dioxide (CO2) over a 100-year period. It has a long atmospheric lifetime of about 3,200 years, contributing significantly to global warming and climate change.
  • Persistence: SF6 is highly stable and can remain in the atmosphere for thousands of years, making it a long-term environmental pollutant.
