Features

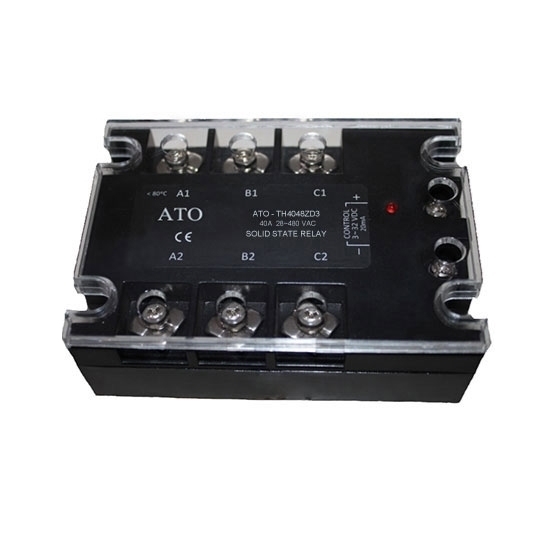

100A 3-phase solid state relay (SSR) features 3-32V DC input voltage and 24-480V AC output voltage with compact size, high structural strength, good impact resistance, and strong shock resistance. The SSR relay offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

• Built in RC absorption
• Photoelectric isolation
• SCR output
• LED indicator for operation status
• Removable protective cover for safety
• Panel mount
• Zero-crossing switch type

Specification

Note:

1. When the load is a resistive load, the maximum load current of the selected SSR should be 2~3 times greater than the actual load current;

2. When the load is an inductive load, the maximum load current of the selected SSR should be more than 7~8 times the actual load current.

3. When the maximum load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

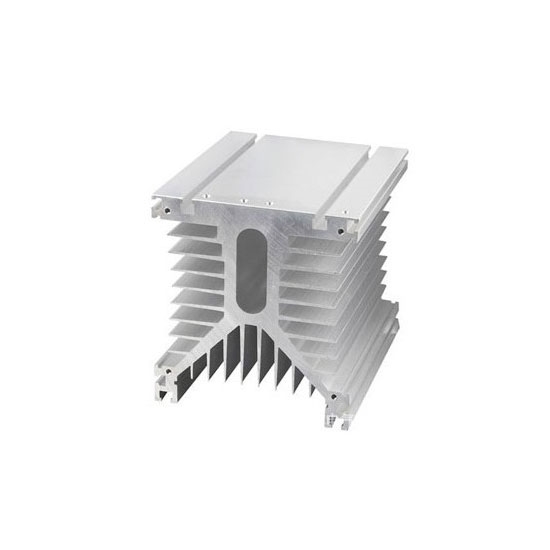

Heat Sink

Dimension (Unit: mm)

Wiring Diagram

Tips: What can solid state relays be classified according to the trigger form?

Based on trigger form, solid state relay (SSR) can be divided into zero-voltage type (Z) and phase modulation type (P). When the appropriate control signal VIN is applied at the input, the P-type solid state relay turns on immediately. When VIN is undone, solid state relay turns off when the load current drops below the triac's holding current (AC commutation). Z-type solid state relay includes a zero-crossing detection circuit internally. When the input signal VIN is applied, the SSR can be turned on only when the load supply voltage reaches the zero-crossing region, which may cause the maximum delay, half a cycle, of the power supply. Z-type solid state relay has the same turn-off criterion as P-type. But because of its approximate sinusoidal load work current and weak higher harmonic interference, Z-type solid state relay has been widely used.
