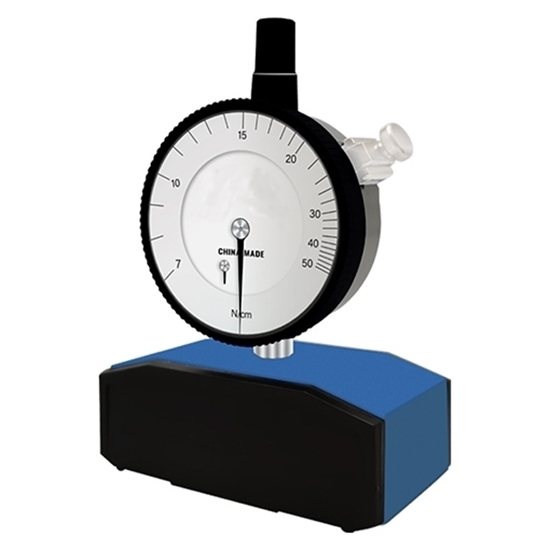

Stencil Tension Meter, 7-80N/ Cm

0 reviews • Write a review

from

$504.44

Ex Tax: $504.44

Stock: In Stock
Model: RDDLZ-TM-80
Weight: 1.00
SKU: RDDLZ-TM-80

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a screen tension meter at a low price online, the tension meter with an accuracy of ±5% of full-scale, resolution 1N. This stencil tension meter is suitable for high-tension silk screen and stencil tension measurement, with high accuracy.

Specification

Model: RDDLZ-AG7-80
Measuring Range: 7-80N/cm
Measurement error: ±5% full range

Operating Temperature: 10℃~50℃
Transport Units of Measurement: N/cm

Measurement Accuracy: 1N
Meter Size: 76*42*108mm

Dimension

Details

Applications

Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. RDDLZ tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

Tips: How do you measure stencil tension?

A measure of the stencil tension or tautness is how much will it deflect with a known force. A long bar extending one end to the other of the stencil with a plunger gauge in the middle that has a known weight applied to it will measure the deflection.
