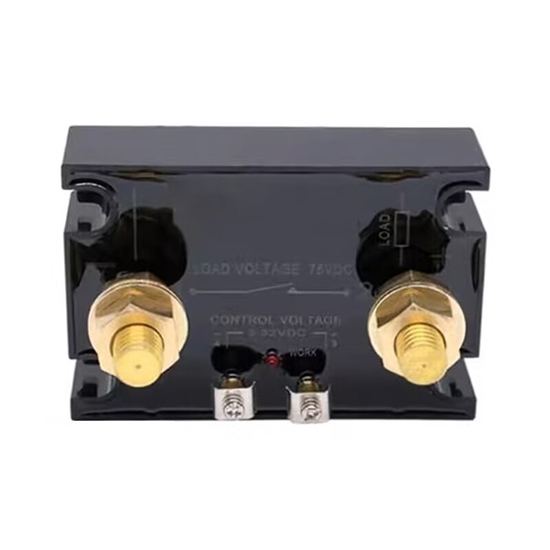

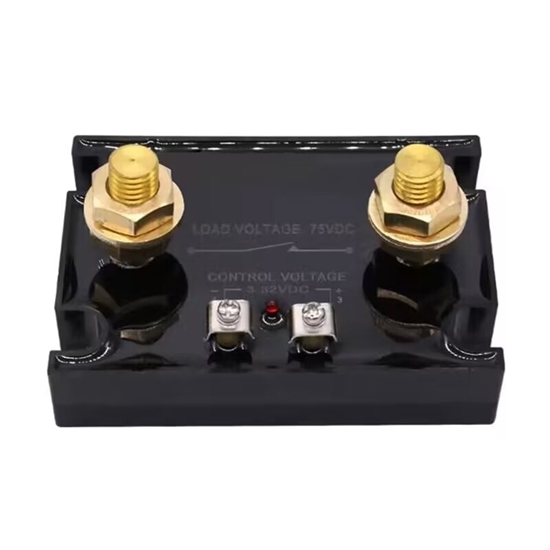

1000A Solid State Relay (SSR) is a high-performance electronic switching device designed for demanding industrial and commercial applications. The SSR relay operates with an input control voltage range of 3-32V DC and is capable of handling output currents up to 1000A, making it ideal for high-power switching tasks. Unlike traditional mechanical relays, high voltage ssr solid state relay has no moving parts, which ensures silent operation, long lifespan, and increased reliability.

Features

High current capacity
DC-DC control
No mechanical contacts
Fast response
Low noise
Strong anti-interference ability
Heat dissipation design
Over-current protection, overheating protection

Specification

Model		RDDLZ-SSR-DD1000A
Input	Control voltage range	3-32V DC
	Max. input current	18mA
	Must operate voltage	3V DC
	Must release voltage	2V DC
Output	Load voltage	75V DC
	Load current	1000A
	Maximum off-state leakage current	2mA
	Maximum on-state voltage drop	≤0.05V
General	Type	DC to DC
	Dimension L – W – H (mm)	105×74×53
	Dielectric strength	2500V
	Operational temperature	-20℃~ 80℃
	Certification	CE

Dimension (Unit: mm)

1000A solid state relay (SSR)

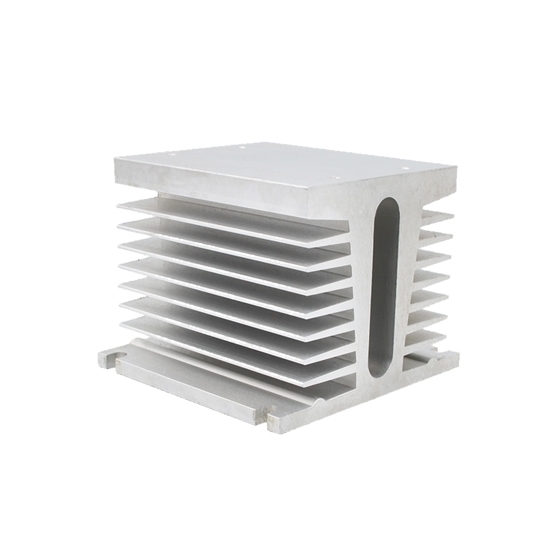

Heat sink

Wiring Diagram

Usage Tips

When using the 1000A SSR Solid State Relay, please keep the following points in mind to ensure optimal performance and longevity:

Proper Installation: Install the relay in a well-ventilated location, avoiding high temperatures and humid environments to ensure good heat dissipation.
Correct Wiring: Follow the wiring diagram on the product label for proper connections, ensuring the input and output voltages match the product specifications. Use appropriately sized cables to handle high current.
Load Selection: Ensure the connected load is within the relay's rated current range to avoid overloading.
Environmental Protection: In harsh environments, consider additional protective measures such as sealed boxes or protective covers to enhance resistance to corrosion, humidity, and dust.
Regular Maintenance: Regularly check the relay's wiring to ensure good connections, and clean dust from the heat sink to maintain effective heat dissipation.
Temperature Monitoring: During prolonged operation under high load, monitor the relay's temperature to ensure it operates within a safe range.

Following these usage tips will help you maximize the performance of the 1000A SSR Solid State Relay and ensure its stable and reliable operation.
