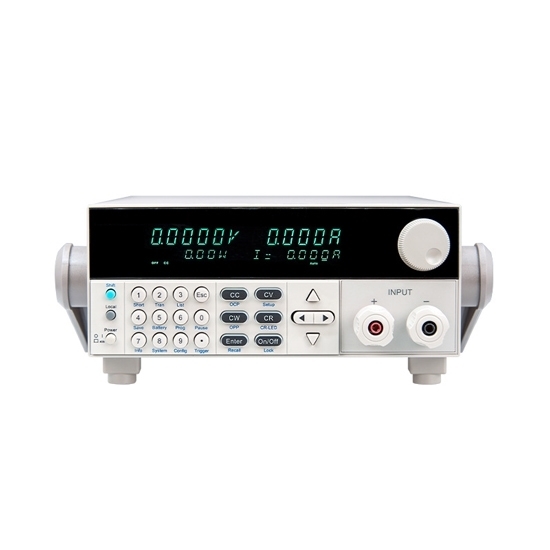

Programmable DC Electronic Load, 150W/120V/30A

0 reviews • Write a review

from

$758.56

Ex Tax: $758.56

Stock: In Stock
Model: RDDLZ-EL-150W
Weight: 1.00
SKU: RDDLZ-EL-150W

Available Options

Short Description

Communication Line

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality 150W DC electronic load for sale online. It comes with a 120V output voltage and 30A output current, providing flexibility and accuracy in load testing. RDDLZ programmable DC electronic load has become a valuable device in various industries that require precise control of electrical loads.

Specifications

Model		RDDLZ-IT8511
Rating (0~40℃)	Input Voltage	0~120V
	Input Current	0~30A
	Input Power	150W
	Min. Operating Voltage	0.12V/3A	1.2V/30A
Constant Voltage Mode	Range	0~18V	0~120V
	Resolution	1mV	10mV
	Accuracy	±(0.05%+0.025%FS)
Constant Current Mode	Range	0~3A	0~30A
	Resolution	0.1mA	1mA
	Accuracy	±(0.05%+0.1%FS)	±(0.1%+0.1%FS)
Constant Resistance Mode*1	Range	<100Ω	<4kΩ
	Resolution	0.01Ω	1Ω
	Accuracy	±(1%+0.3%FS)	±(1%+0.8%FS)
Constant Power Mode*2	Range	0~100W	100~120W
	Resolution	1mW	10mW
	Accuracy	±(0.5%+0.2%FS)
Measuring Range
Voltage Readback Value	Range	0~18V	0~120V
	Resolution	1mV	10mV
	Accuracy	±(0.1%+0.1%FS)	±(0.02%+0.15%FS)
Current Readback Value	Range	0~3A	0~20A
	Resolution	0.1mA	1mA
	Accuracy	±(0.1%+0.1%FS)	±(0.2%+0.15%FS)
Power Readback Value	Range	0~100W	100~120W
	Resolution	1mW	10mW
	Accuracy	±(0.5%+0.2%FS)
Protection Range
Over Power Protection		≈200W
Over Current Protection		≈3.3A	≈33A
Overvoltage Protection		≈130V
Over Temperature Protection		≈85℃
Specifications
Short Circuit	Current (CC)	≈3.3A/3A	≈33A/30A
	Voltage (CV)	0V
	Resistance (CR)	≈40mΩ
Input Terminal Impedance		≈300kΩ
Battery Test	Capacity	Max 999AH
Dynamic Mode	Frequency	0.1Hz~1kHz
Dimensions		214.5x88.2x354.6mm
Weight		5.5kg

Features

The panel of the 30A 120V programmable DC electronic load can be edited, and the rotary coding switch makes it easier to operate. Built-in USB/RS232 interface, memory capacity of 100 groups, which can be stored in the instrument.
This 150W electronic load tester has a battery test function, automatic test function, over-power test function, over-current test function, short-circuit function (CC/CV/CR/CW working mode), and current monitoring function.
Its voltage measurement resolution can reach up to 0.1mV/0.1mA, and its sense remote measurement function compensates for line voltage drops to make long-distance testing more accurate.

Details

Applications

RDDLZ 150W programmable DC electronic load can be used for testing batteries, power supplies, LED lighting, DC-DC converters, voltage regulators, solar panels, automotive electronics, aerospace and defense electronics, and educational training.

Tips: Why choose a DC electronic load?

Choosing a DC electronic load offers several advantages. Firstly, it provides precise and controlled loading conditions, allowing for accurate testing and characterization of power sources, batteries, and electronic components. Secondly, it can simulate a wide range of load scenarios, helping to assess the performance, efficiency, and stability of devices under various conditions, making it an indispensable tool in product development, quality control, and research across diverse industries.

Additionally, DC electronic loads are programmable and can be automated, saving time and labor in repetitive testing processes. They also offer safety features, such as overcurrent and overvoltage protection, minimizing the risk of damage to the device under test and ensuring a secure testing environment. These factors make DC electronic loads a versatile and essential test instrument for engineers and researchers in the electronics field.
