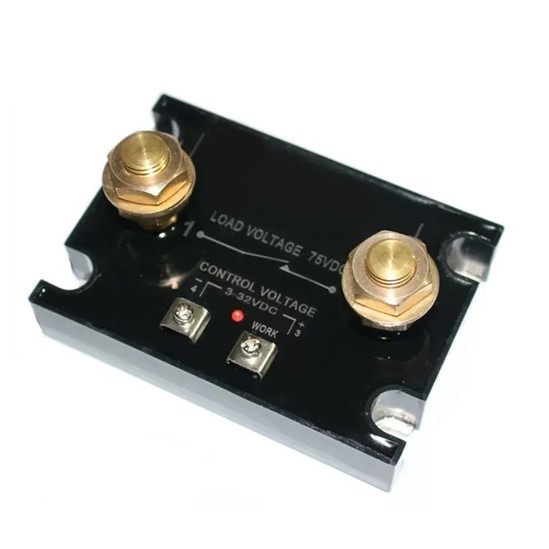

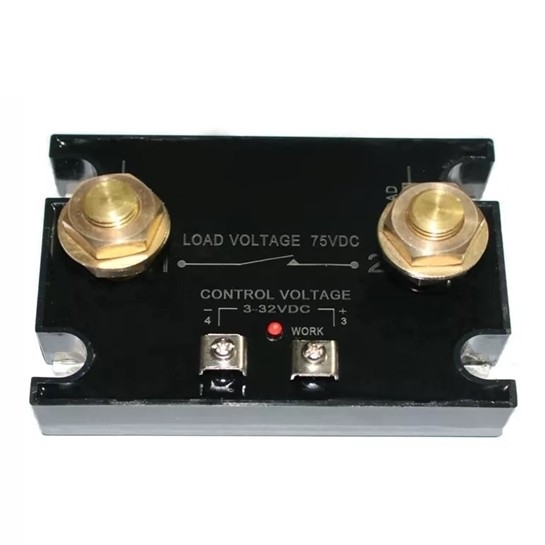

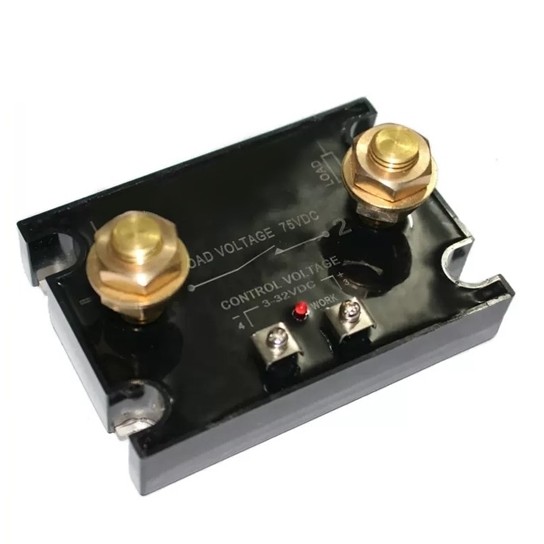

500A SSR Solid State Relay, 3-32V DC To DC

0 reviews • Write a review

from

$214.62

Ex Tax: $214.62

Stock: In Stock
Model: RDDLZ-SSR-DD500A
Weight: 1.00
SKU: RDDLZ-SSR-DD500A

Available Options

Heat Sink

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 500A SSR Solid State Relay is a high performance DC to DC (DC-DC) relay designed for high current applications. With an input control voltage range of 3-32V DC, it is capable of handling output currents up to 500 amps, ensuring stable operation in high-power load environments. The solid state relay features a mechanical contactless design for high reliability and durability, as well as a fast response time that enables switching operations to be completed in milliseconds.

The solid state relay's strong anti-interference capability makes it suitable for a wide range of industrial automation equipment and applications that require high anti-interference capability. In addition, the 500A SSR is equipped with an advanced thermal design that effectively manages the heat generated during high-current operation, ensuring that the device operates within a safe temperature range. Its built-in overcurrent protection and overheat protection further enhance the safety and reliability of the product.

Features

High current capacity
DC-DC control
No mechanical contacts
Fast response
Low noise
Strong anti-interference ability
Heat dissipation design
Over-current protection, overheating protection

Specification

Model		RDDLZ-SSR-DD500A
Input	Control voltage range	3-32V DC
	Max. input current	18mA
	Must operate voltage	3V DC
	Must release voltage	2V DC
Output	Load voltage	75V DC
	Load current	500A
	Maximum off-state leakage current	2mA
	Maximum on-state voltage drop	≤0.05V
General	Type	DC to DC
	Dimension L – W – H (mm)	105×74×53
	Dielectric strength	2500V
	Operational temperature	-20℃~ 80℃
	Certification	CE
	Weight	1.5kg

Dimensions (Unit: mm)

500A solid state relay (SSR)

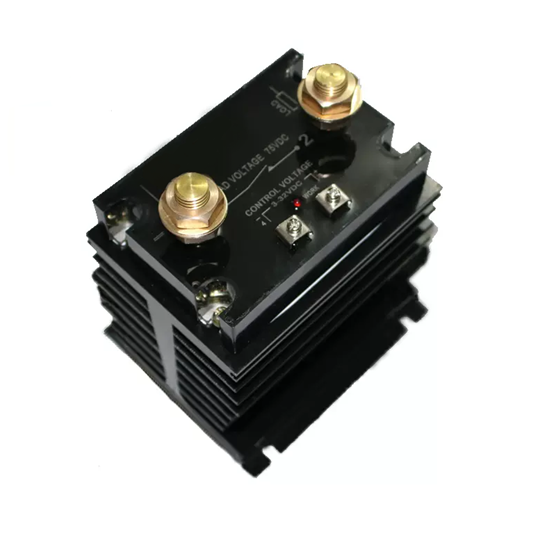

Heat sink

Wiring diagram

Tips: Function of SSR

A Solid State Relay (SSR) functions as an electronic switch that uses semiconductor components to control the flow of electrical current. Unlike traditional electromechanical relays, SSRs have no moving parts. When a small control voltage is applied to the input, the semiconductor components (such as thyristors, triacs, or transistors) are activated, allowing the current to flow through the output circuit. This results in fast, reliable, and silent switching.

Solid state relays are commonly used in applications where high durability and performance are essential. These include industrial automation, heating control, motor control, and lighting systems. Their ability to handle high-frequency switching without mechanical wear, along with resistance to shock and vibration, makes them ideal for demanding and harsh environments. SSRs also offer advantages such as compact size, no sparking, and low control power requirements, making them suitable for a wide range of modern electrical and electronic applications.
