Air Particle Counter For Clean Room, PM2.5/PM10

0 reviews • Write a review

from

$498.76

Ex Tax: $498.76

Stock: In Stock
Model: RDDLZ-PC-9600
Weight: 1.00
SKU: RDDLZ-PC-9600

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

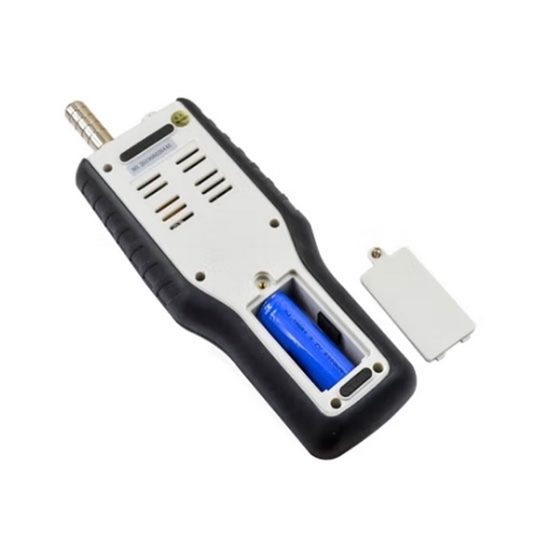

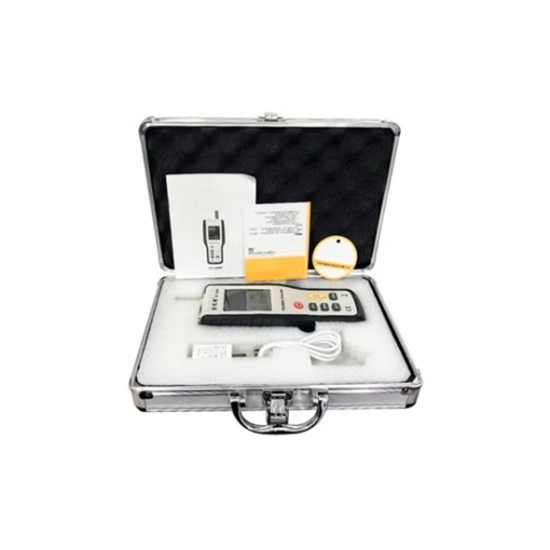

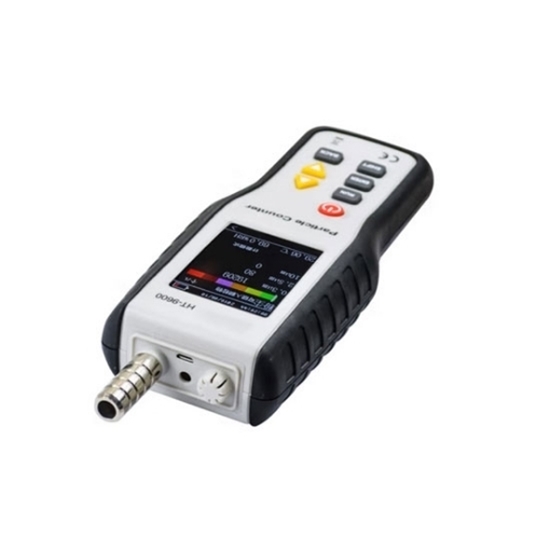

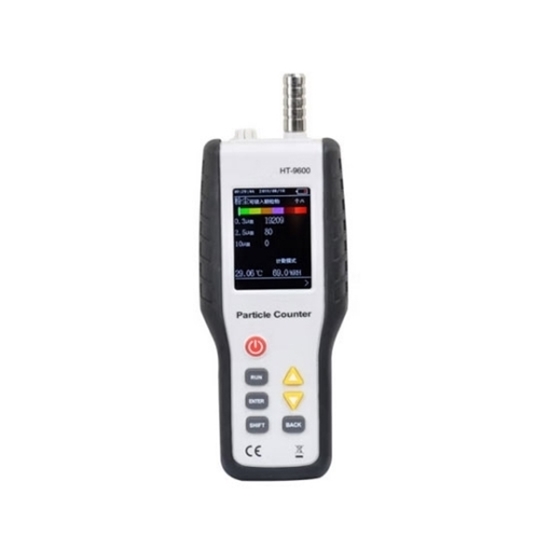

Cleanroom air particle counter for sale, particle size range PM2.5/PM10, test particle size 0.3μm/2.5μm/10.0μm, with 2.8-inch high-definition color screen display, two measurement modes: air quality + temperature and humidity measurement, dust + temperature and humidity measurement. Particle counter machine is suitable for clean room inspection, filter on-site inspection, biological safety cabinet, HVAC system, computer room, food and beverage packaging environment detection.

Specification

Model	RDDLZ-HT9600
Size Range	PM2.5/PM10
Sensor Principle	Photoelectric type
Light Source	Laser diode
Particle Size Channel	0.3um/2 .5um/10um
Flow Rate	1L/min
Measuring Range	0-1000ug/m3
Resolution	1ug
Detection Method	Manual
Sampling Time	50s
Sampling Method	Fan constant flow sampling
Typical Accuracy	<20%
Concentration Unit	Pcs/L ug/m³
Temperature Range	0~50°C
Typical Accuracy	±1°C
Humidity Range	0~99%RH
Typical Accuracy	±2%RH
Operating Environment	-10~50°C 10~90%RH
Storage Data	999 Groups
Auto Shutdown	2 minutes (no button operation)
Power Supply	USB direct charging
Display Mode	LCD numerical display with color backlight
Screen Size	2.8 inches
Screen Resolution	320x240
Weight	325g (including battery)
Overall Dimension	245x85x40mm

Dimension Unit (mm)

Details

Applications

Tips: What is the structure of a dust particle counter?

Dust particle counter mainly consists of five parts: a light source, two sets of lenses, a measurement chamber, a light detector, and an amplification circuit. Among them, the light source affects the performance of the counter and is one of its key components, which needs to meet the characteristics of long life, high stability, and not easy to be disturbed by the outside world. Two sets of lenses are used to complete the function of focusing, one set is used to focus the light from the light source, and one set is used to focus the scattered light generated by the scattering phenomenon. The measurement chamber is used to make the air particles scattered by the light. A light detector is used to convert the light pulse signal into an electrical pulse signal. The amplifier circuit is used to amplify the weak electrical signal and select the pulse signal that meets the requirements.
