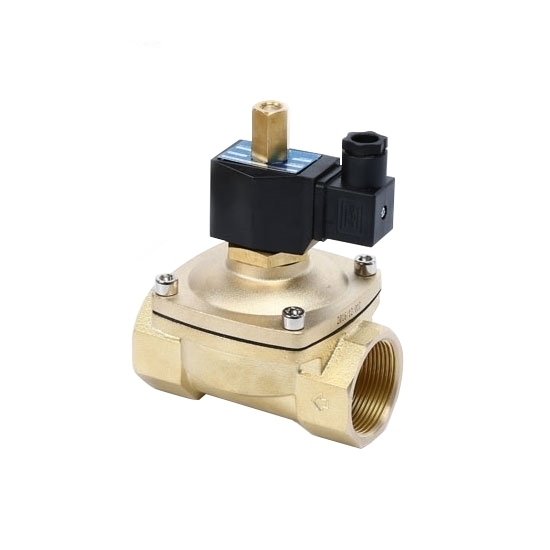

Solenoid Valve, 2 Way, Normally Open, 24V/220V For Air Water Oil

0 reviews • Write a review

from

$91.31

Ex Tax: $91.31

Stock: In Stock
Model: RDDLZ-VALVE-2WK
Weight: 1.00
SKU: RDDLZ-VALVE-2WK

Available Options

Short Description

Voltage (V)

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Genral purpose Two-way two-position Normally Open (NO) brass electric solenoid valves are used to release and shut off the flow of air, water and oil with power supply of 24V DC or 110V AC, 220V AC. The solenoid valve is closed when the solenoid is energized; the valve is open when the solenoid is de-energized. It is widely used in the areas like mechanical, textile, medical, food processing and so on.

Specification

Model	2WK160-15	2WK200-20	2WK250-25	2WK350-35	2WK400-40	2WK500-50
Valve Type	2 Way 2 Position, Normally Open
Media	Water, Oil, Air
Operation Mode	Pilot-operated
Port Diameter (mm)	16	20	25	35	40	50
Flow Rate (Cv)	4.8	7.6	12	24	29	48
Port Size	G1/2"	G3/4"	G1"	G1¼"	G1½"	G2"
Fluid Viscosity	Under 20 CS
Operating Pressure	Water, Oil: 0~0.5MPa (0~72psi) Air: 0~0.7MPa (0~101psi)
Max. Pressure Resistance	1.0MPa
Voltage (Optional)	24V DC, 110V AC, 220V AC
Voltage Tolerance	±10%
Operating Temperature	-5~+85℃ (23~185℉)
Body Material	Brass
Seal Material	NBR
Coil Power	20VA

Dimensions

Model	Dimension
Model	Port size (inch)	A (mm)	B (mm)	C (mm)
2WK160-15	G1/2"	67.5	55.5	124.5
2WK200-20	G3/4"	73	55.5	130
2WK250-25	G1"	94	72.5	136.5
2WK350-35	G1¼"	120	92.5	151.5
2WK400-40	G1½"	122	92.5	157.5
2WK500-50	G2"	129	95	170

Two-way Solenoid Valve Symbol

5 Tips for Solenoid Valve Maintenance

Regular inspection and maintenance, once or twice a year, is the best way to ensure the solenoid valve reliable work and long service life.
When the solenoid valve is put into operation after the installation or after a long time stop, it needs to inject the medium for several times for test runs. The solenoid valve cannot be placed into service until it works normally.
Before the maintenance, the power supply of solenoid valve must be cut off and the pressure of the medium should be discharged.
The coil components should not be disassembled.
All parts of the solenoid valve should be put in order when the valve is disassembled for cleaning. Thus, it is able to assemble the parts in order after cleaning.
