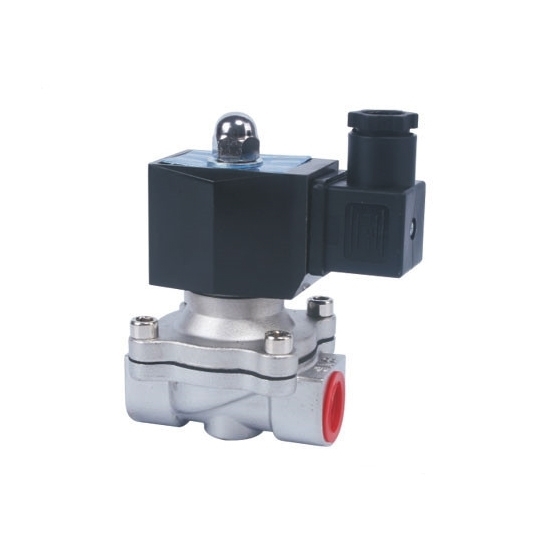

Solenoid Valve, 2 Way, Normally Closed, 12V/24V For Air Water Oil

0 reviews • Write a review

from

$77.67

Ex Tax: $77.67

Stock: In Stock
Model: RDDLZ-VALVE-2WB
Weight: 1.00
SKU: RDDLZ-VALVE-2WB

Available Options

Short Description

Voltage (V)

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

2/2 way general purpose pilot-operated solenoid valves is suitable for air, water and oil with stainless steel body and NBR seal. The valve is Normally Closed (NC), that is, the valve is open when the solenoid is energized, and closed when the solenoid is de-energized. This solenoid valve features high quality, high reliability and long service life for the applications such as mechanical, textile, medical, food processing and so on.

2/2-way Stainless Steel Solenoid Valve Specification

Model	2WB160-15	2WB200-20	2WB250-25	2WB350-35	2WB400-40	2WB500-50
Valve Type	2 Way 2 Position, Normally Closed (N/C)
Media	Air, Water, Oil
Operation Mode	Pilot-operated
Port Diammeter (mm)	16	20	25	35	40	50
Flow Rate (Cv)	4.8	7.6	12	24	29	48
Port Size	G1/2"	G3/4"	G1"	G1¼"	G1½"	G2"
Fluid Viscosity	Under 20 CS
Operating Pressure	Water, Oil: 0~0.5MPa (0~72psi) Air: 0~0.7MPa (0~101psi)
Max. Pressure Resistance	1.0MPa
Voltage(Optional)	12V DC, 24V DC, 110V AC, 220V AC
Voltage Tolerance	±10%
Operating Temperature	-5~+85℃ (23~185℉)
Body Material	Stainless Steel 304
Seal Material	NBR
Coil Power	20VA			50VA

Dimensions

Model	Dimension
Model	Port size	A (mm)	B (mm)	C (mm)
2WBK160-15	G1/2"	69	56	111
2WBK200-20	G3/4"	71	56	117
2WBK250-25	G1"	98	76	126
2WBK350-35	G1¼"	116	87	155
2WBK400-40	G1½"	122	94	165
2WBK500-50	G2"	167	123	189.5

Two-way Solenoid Valve Symbol
Tips: Stainless Steel Solenoid Valve vs. Brass Solenoid Valve

Stainless steel solenoid valve is the most common solenoid valve product. Stainless steel solenoid valves are mainly used for the control of liquid media such as corrosive liquids, ultra-clean liquids and edible liquids. Liquids, gases, and oils can be mixed, thus increasing the range of use of solenoid valves. It can be widely applied in textile, printing, chemical, plastics, rubber, pharmaceutical, food, building materials, machinery, electrical appliances, surface treatment and other production and scientific research departments as well as bathroom, canteen, air conditioning and other daily life facilities.

Brass solenoid valve is relatively low in price, suitable for ordinary working conditions. Brass solenoid valve is suitable for water or liquid as the industrial medium. The brass solenoid valve can be used to automatically controlled or remotely control the on and off of the pipeline with water, oil, liquid and other working medium. It is widely used in shipbuilding industry, petrochemical industry, electric power equipment, medical equipment, industrial furnace, drying equipment, fire fighting equipment, HVAC, cleaning equipment, electroplating and coating, food industry, vacuum pipeline, water plant siphon system, etc.
