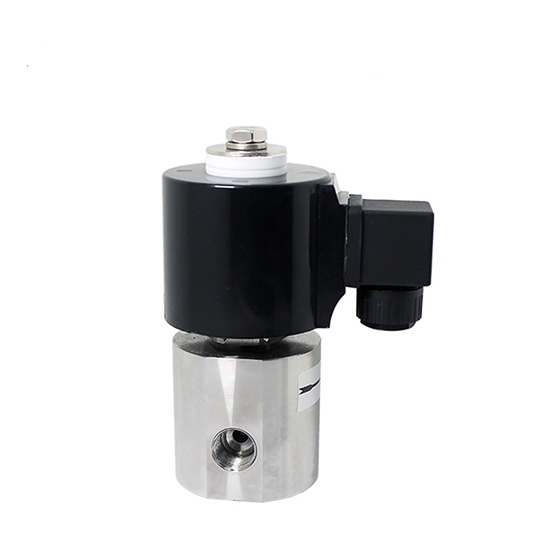

High Pressure Solenoid Valve, 2 Way, NC, AC 24V/110V/220V

0 reviews • Write a review

from

$219.30

Ex Tax: $219.30

Stock: In Stock
Model: RDDLZ-HPSV-AC
Weight: 1.00
SKU: RDDLZ-HPSV-AC

Available Options

Short Description

Voltage

Port Size

Pressure

Anti-explosion

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

High pressure solenoid valve with pilot, operated piston construction for compress air machine, injecting plastic machine. Solenoid valve often used in medical equipment and drying equipment.

Specification:

(Normally open can be customized)

Model	RDDLZ-HKKB-08	RDDLZ-HKKB-08	RDDLZ-HKKB-10	RDDLZ-HKKB-15
Port Size	1/4"	1/4"	3/8"	1/2"
Orifice	1.2	2	2.5	3
Cv	0.03	0.09	0.15	0.24
Min Pressure	0.1 MPa	0.1 MPa	0.1 MPa	0.1 MPa
Max Pressure (AC 24VA)	25 MPa	25 MPa	25 MPa	25 MPa
Max Pressure (DC 18W)	25 MPa	25 MPa	25 MPa	10 MPa
Seals Material	PTFE
Body Material	SS304
Coil	S21B
Voltage	AC 24V/110V/220V
Port Thread	BSPP, BSPT, NPT
Medium	water, hot water, compressed air, oil
Temperature	-10 ℃ ~ 180 ℃
Tolerance	±10%

Dimension (Unit: mm)

Size	A (mm)	C (mm)
HKKB-1/4"	53	148
HKKB-3/8"	53	148
HKKB-1/2"	53	148

Tips: Precautions For Installation of High Pressure Solenoid Valve

Read the manual before installation.
The pipeline should be washed before use, the medium is not clean should be installed filter, to prevent impurities from interfering with the normal work of the valve.
A long time after the suspension of the solenoid valve, should be easy to use after the removal of condensation; When disassembling and washing, the parts should be put in order and then restored to their original state.
Solenoid valve is generally one-way work, can not be reversed, the arrow on the valve is the direction of movement of the pipeline fluid, must be consistent.
Solenoid valve in the frozen place to work again should be heated treatment, or set insulation measures.
Solenoid valve installation general valve body level, coil vertical upward, some products can be arbitrarily installed, but when the conditions permit the best vertical, in order to increase the service life.
