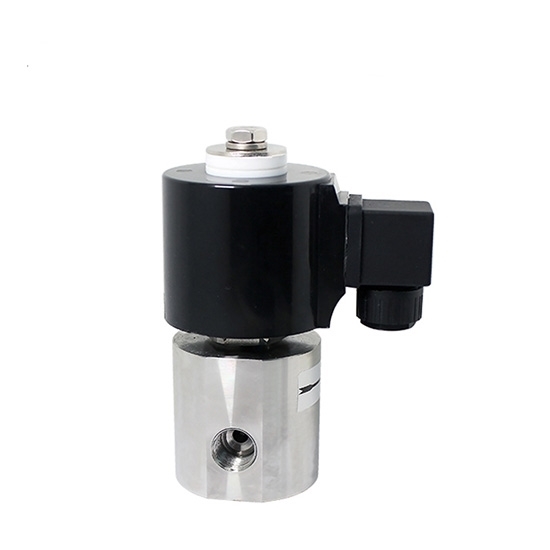

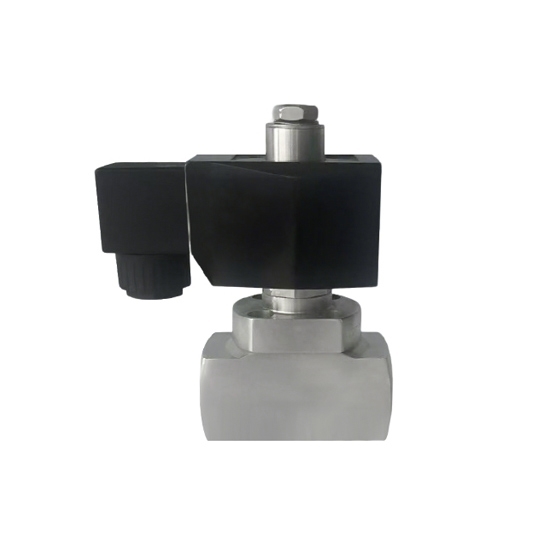

High Pressure Solenoid Valve, 2 Way, NC, DC 6V/12V/24V

0 reviews • Write a review

from

$219.30

Ex Tax: $219.30

Stock: In Stock
Model: RDDLZ-HPSV-DC
Weight: 1.00
SKU: RDDLZ-HPSV-DC

Available Options

Short Description

Voltage

Port Size

Pressure

Anti-explosion

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

2 way solenoid valve with pilot and pressure between 0.1 MPa and 25 MPa. NC solenoid valve often used in electric power equipment and drying equipment.

Specification

(Normally open can be customized)

Model	RDDLZ-HKKB-08	RDDLZ-HKKB-08	RDDLZ-HKKB-10	RDDLZ-HKKB-15
Port Size	1/4"	1/4"	3/8"	1/2"
Orifice	1.2	2	2.5	3
Cv	0.03	0.09	0.15	0.24
Min Pressure	0.1 MPa	0.1 MPa	0.1 MPa	0.1 MPa
Max Pressure (AC 24VA)	25 MPa	25 MPa	25 MPa	25 MPa
Max Pressure (DC 18W)	25 MPa	25 MPa	25 MPa	10 MPa
Seals Material	PTFE
Voltage	DC 6V/12V/24V
Coil	S21B
Body Material	SS304
Port Thread	BSPP, BSPT, NPT
Medium	water, hot water, compressed air, oil
Temperature	-10 ℃ ~ 180 ℃
Tolerance	±10%

Dimension (Unit: mm)

Size	A (mm)	C (mm)
HKKB-1/4"	53	148
HKKB-3/8"	53	148
HKKB-1/2"	53	148

Tips: Working Principle of High Pressure Solenoid Valve

At different locations opening holes, each hole leads to different tubing, cavity valve is among, both sides are two electromagnets, which face the magnet coil electricity body will be attracted to which side, by controlling the movement of the valve body blocked or leakage of different discharge of oil hole, and the oil hole is always open, hydraulic fluid will enter the different oil drain, and then through the oil pressure to push oil just the pistons, The piston drives the piston rod, and the piston rod drives the mechanical device. In this way, the current of the electromagnet controls the mechanical movement of the high pressure solenoid valve.
