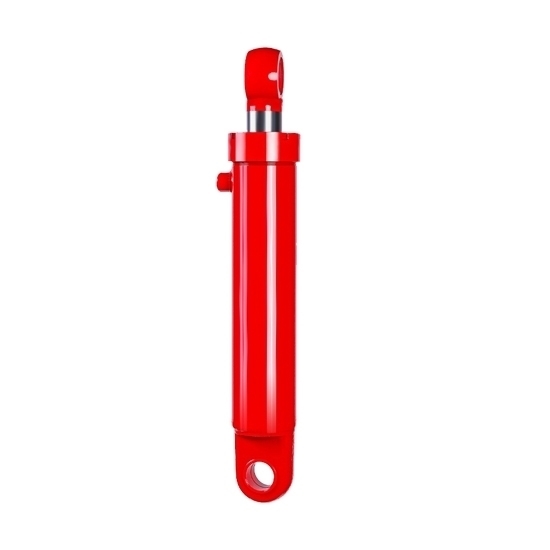

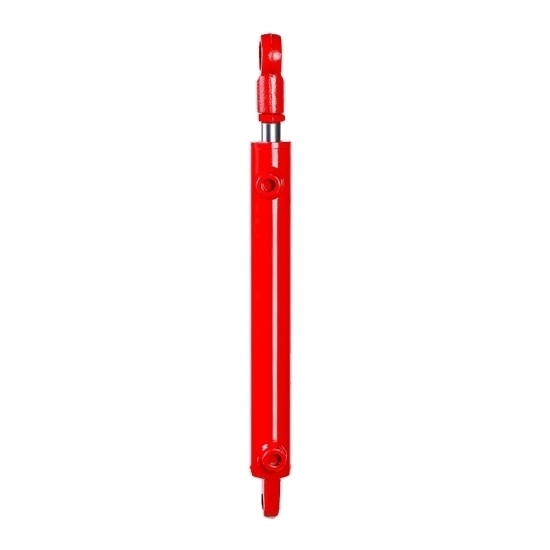

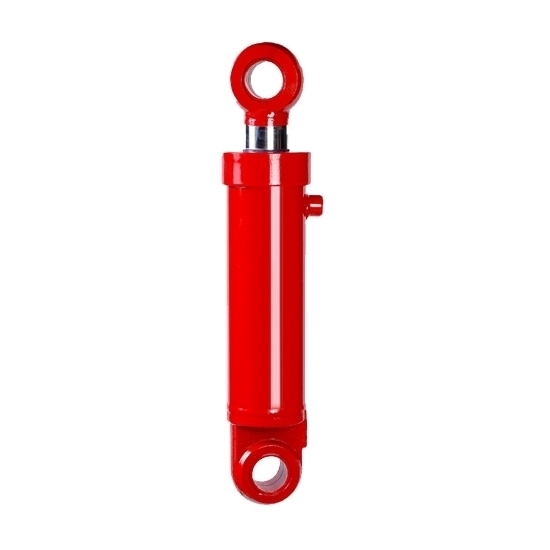

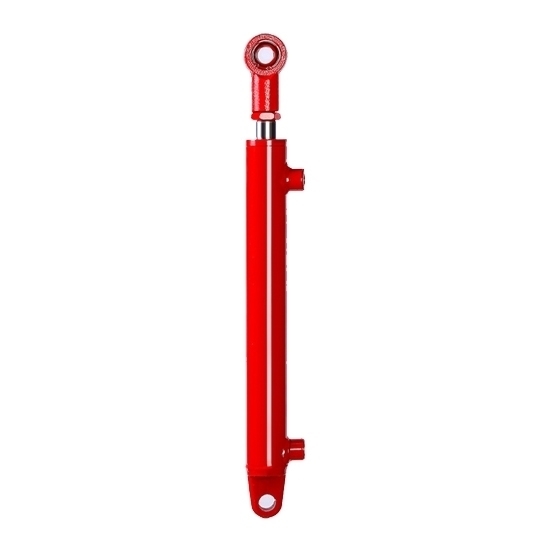

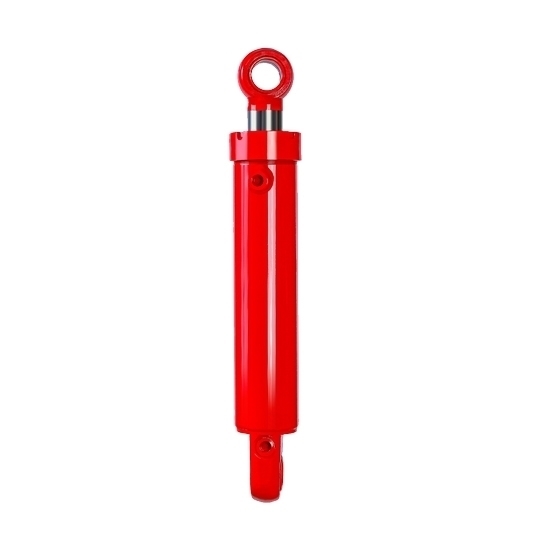

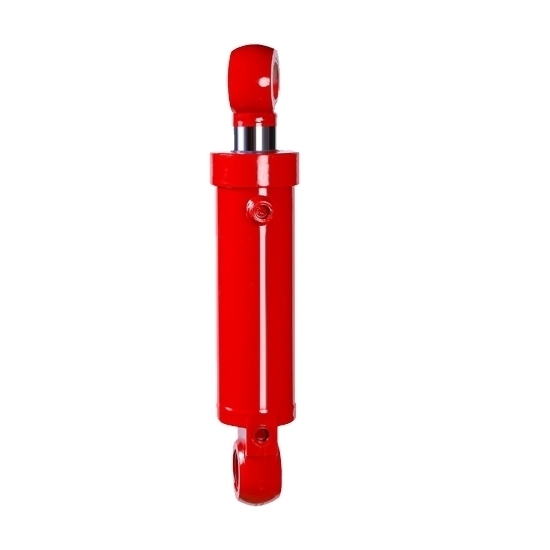

Double Acting Welded Hydraulic Cylinder, 8 Inch (200mm) Stroke

0 reviews • Write a review

from

$150.79

Ex Tax: $150.79

Stock: In Stock
Model: RDDLZ-WHC-200MM
Weight: 1.00
SKU: RDDLZ-WHC-200MM

Available Options

Bore Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.

Specification

Model	RDDLZ-HSG40200	RDDLZ-HSG50200	RDDLZ-HSG63200	RDDLZ-HSG80200	RDDLZ-HSG100200
Acting Type	Double Acting
Stroke	8 inch (200mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ63mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	5 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	49850N (5 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	31681N (3 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG40200

RDDLZ-HSG50200

RDDLZ-HSG63200

RDDLZ-HSG80200

RDDLZ-HSG100200

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG40200	40	50	25	200	18*1.5	20	430	380
RDDLZ-HSG50200	50	60	28	200	18*1.5	20	440	490
RDDLZ-HSG63200	63	73	35	200	18*1.5	30	470	540
RDDLZ-HSG80200	80	90	50	200	18*1.5	40	500	580
RDDLZ-HSG100200	100	112	63	200	22*1.5	50	570	660

Tips: What are the advantages of welded hydraulic cylinders?

Welded hydraulic cylinders offer several advantages in various industrial applications. First, their design is robust and compact, which enhances durability and allows for easy integration into tight spaces. The welding process provides a strong and leak-resistant seal, minimizing the risk of hydraulic fluid leakage and ensuring consistent performance.

Welded cylinders are also highly customizable, allowing for precise tailoring to specific requirements, such as stroke length and bore size, to meet the needs of diverse applications. This flexibility results in cost-effective solutions and efficient use of resources. Additionally, the absence of tie rods in welded cylinders eliminates potential weak points, reducing maintenance and repair costs.

Moreover, welded construction simplifies servicing and resealing, making maintenance more accessible. Overall, these cylinders are favored for their durability, versatility, and reliability, making them a preferred choice in hydraulic systems where strength, space-saving design, and customization are essential.
