Small Proximity Sensor, Inductive, NPN NO, M4/M5/φ3/φ4

0 reviews • Write a review

from

$57.26

Ex Tax: $57.26

Stock: In Stock
Model: RDDLZ-SPS-I1S0
Weight: 1.00
SKU: RDDLZ-SPS-I1S0

Available Options

Short Description

Type

Detection Distance

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

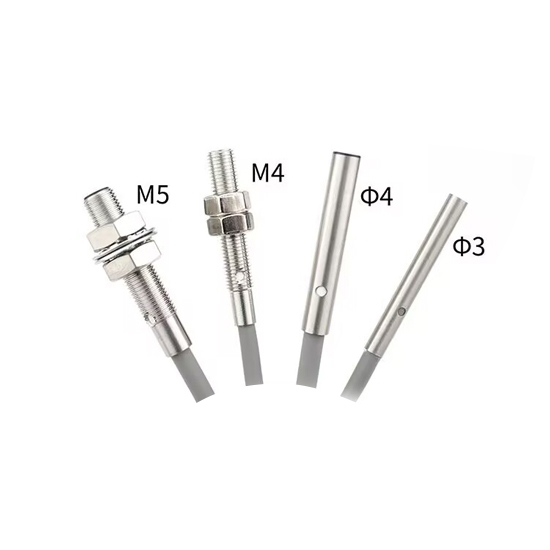

Miniature proximity switch comes with optional types (φ3/M4/φ4/M5), 0.6mm to 1.5mm measurement range, NPN NO output mode, can resistant to environmental factors, and boasts both low and high-temperature resistance. The sensor uses a stainless steel housing with strong corrosion resistance and is suitable for a variety of industrial application scenarios.

Specifications

Model	RDDLZ-I1S030/I1M040/I1S040/I1S050
Installation Method	Flush
Output Method	NPN NO
Detection Distance	0.6mm /0.8mm/1mm (φ3, M4); 0.8mm/1.0mm/1.2mm/1.5mm (φ4, M5)
Operating Voltage	10~30VDC
Continuous Waves	<10%
No Load Current	<6mA
Maximum Load Current	100mA (φ3, M4); 150mA (φ4, M5)
Leakage Current	<0.01mA
Voltage Drop	<1.5V
On-Off Level	2kHz/1.5kHz
Response Time	<0.3ms
Switching Hysteresis	<10% (Sr)
Repeat Accuracy	<3.0% (Sr)
Protection Level	IP67
Operating Temperature	-25℃ ~70℃
Temperature Drift	<10% (Sr)
Reverse Polarity Protection	Yes
Shell Material	Stainless Steel Pipe Fittings

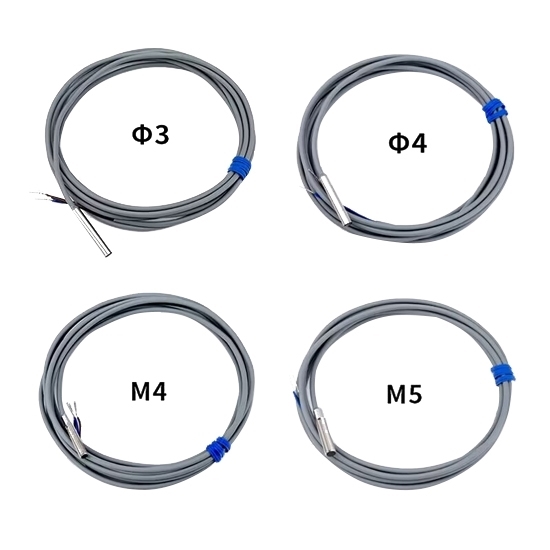

Connection Method	PVC Cord, Medium 2.5 x 3 Cores
Standard Wire Length	2m

Dimensions (Unit: mm)

Tips: Advantages of small inductive proximity sensor

Small inductive proximity sensors offer several advantages in industrial applications. Their compact size makes them suitable for installations in tight spaces and allows for easy integration into machinery and industrial equipment. The reduced size also contributes to a lighter overall system weight. These sensors are known for their high precision and accuracy in detecting metallic objects without physical contact, ensuring reliable operation.

Small inductive proximity sensors are typically energy-efficient, consuming minimal power during operation. Additionally, they are durable and capable of functioning in challenging environments, thanks to their robust construction. The absence of moving parts enhances their longevity and reduces the need for frequent maintenance. These sensors are versatile, finding applications in various industries for tasks such as object detection, position sensing, and automation. Overall, the compact design, reliability, and versatility of small inductive proximity sensors make them valuable components in industrial automation systems.
