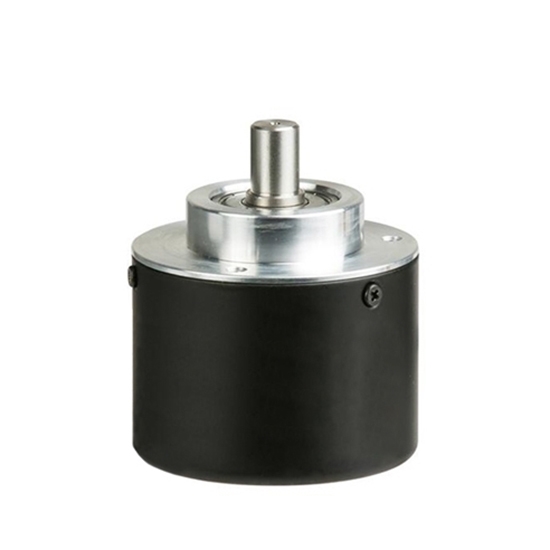

Incremental Rotary Encoder, Shaft, 5000 Ppr

Incremental Rotary Encoder, Shaft, 5000 Ppr
Incremental Rotary Encoder, Shaft, 5000 Ppr
0 reviews • Write a review
from
$299.95
Ex Tax: $299.95
  • Stock: In Stock
  • Model: RDDLZ-IRE-5000PS
  • Weight: 1.00
  • SKU: RDDLZ-IRE-5000PS

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 5000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-S5808G-5000BM
Weight100 g
WiringColorRedBlackGreenWhiteYellowBrownGrayOrange
SignalVccGNDABZA-B-Z-
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 50N, axial load: 20N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz


Model Selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
S: Shaft58: 58mm8: 8mmG: Cable edge output1: 1m
2: 2m
3: 3m
4: 4m		5000: 5000 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  1. The optical shaft encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  4. Compact and lightweight, suitable for automation equipment with limited installation space.
  5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: How to use rotary encoder to detect linear displacement?

  1. Use a flexible coupling to connect the rotary encoder directly to the main shaft of the power unit that drives the linear displacement.
  2. Use a small gear (spur gears, bevel gears or worm gear) box to connect with the power unit.
  3. Use a gear rotating on a spur rack to transfer linear displacement information.
  4. Get linear displacement information on the drive chain sprocket.
  5. Obtain linear displacement information on the timing belt of the timing belt pulley.
  6. Use rotary encoders that are equipped with magnetic rollers to obtain displacement information on linear displaced flat steel surfaces (avoid slip).
  7. Use retractable wire assembly like a steel tape to connect the rotary encoder to detect linear displacement information (data processing need to overcome the stack winding error).
  8. Similar to 7, use retractable wire assembly with a small torque motor to connect a rotary encoder to detect linear displacement information (there are similar products in Germany at the moment, with a complex structure and almost no stack winding error).
