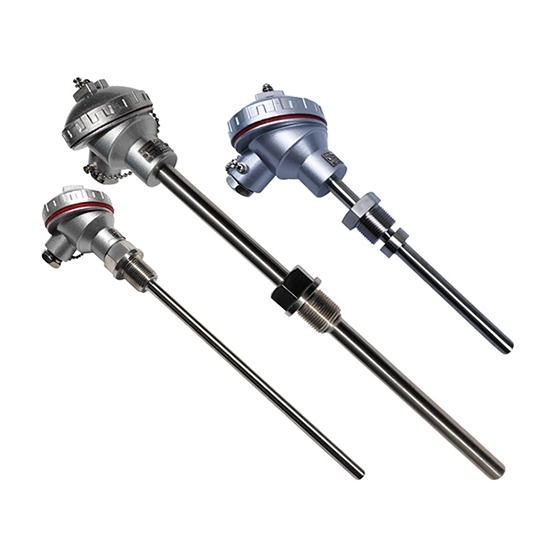

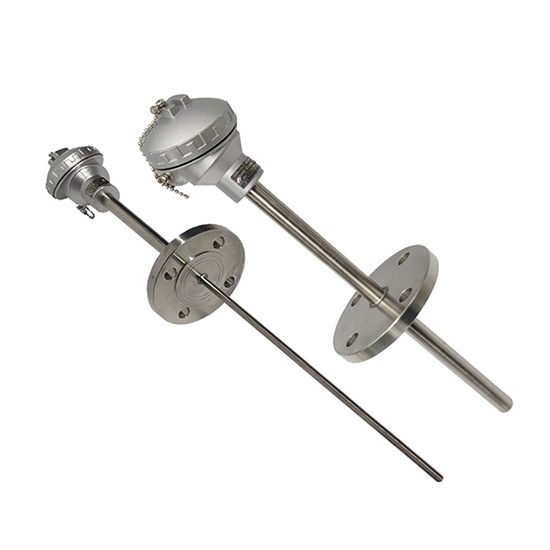

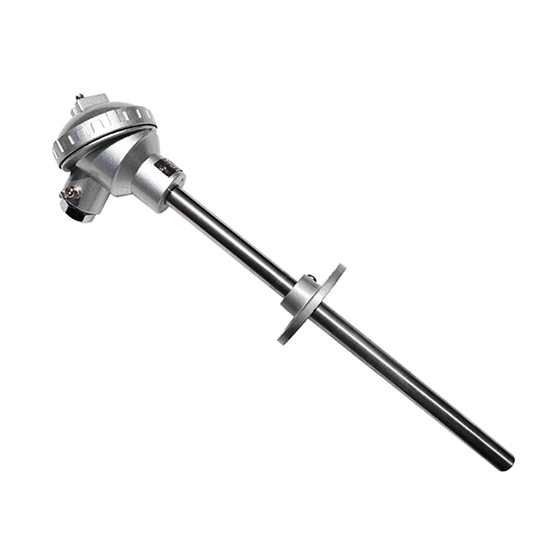

RTD Sensor, Pt100, Thermowell

0 reviews • Write a review

from

$91.54

Ex Tax: $91.54

Stock: In Stock
Model: RDDLZ-RTD-TW
Weight: 1.00
SKU: RDDLZ-RTD-TW

Available Options

Total Length of Thermowell

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RTD (resistance temperature detector) sensor can directly connect to secondary instrument by copper conductor, and provide accurate input signal of temperature changes for display instruments, recording instruments, signal conditioners, scanister and computer.

Specification

1. RTD temperature range and accuracy chart

Type of sensing element	Measuring range	Allowable deviation Δt
Pt100	-200~420℃	Class B (-200~800℃) Permissible deviation ±(0.30+0.005\|t\|)
Pt100	-200~420℃	Class A (-200~650℃) Permissible deviation ±(0.15+0.002\|t\|)
Cu50	-100~150℃	-50~100℃ Permissible deviation ±(0.30+6.0*10-3t)

Note: t is the actual measuring temperature absolute value of the temperature sensing element.
2. Thermal response time of RTD sensor

Type of sheathed sensing element	Thermowell material	Thermowell diameter (mm)	Thermal response time (s)
Pt100, Pt1000	1Cr18Ni9Ti, 2Cr25Ni20	Ф16	≤90
Pt100, Pt1000	1Cr18Ni9Ti, 2Cr25Ni20	Ф12	≤30
Cu50, Cu100	H62, 1Cr18Ni9Ti	Ф16	≤120
Cu50, Cu100	H62, 1Cr18Ni9Ti	Ф12	≤120

Feature

Strong Applicability: RTD sensor can be used with display instruments, recording instruments, and electronic regulators. It can directly measure the temperature of liquid, steam, gas medium and solid surface in the range of -200℃~+420℃ in various production processes.
Anti-interference: The heated part (temperature sensing element) of the Pt100 RTD sensor is a double-wound metal wire evenly wrapped around a skeleton made of insulating material. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature of the medium layer within the range of the temperature sensing element.
Corrosion Resistance: The protective tube is made of 304 stainless steel, so it has strong anti-pollution performance and excellent mechanical strength, and is suitable for installation in harsh environments.

Installation

Selection

Total length of thermowell (L)	Branch number	Thermowell installing form	Protection head form	Diameter of thermowell

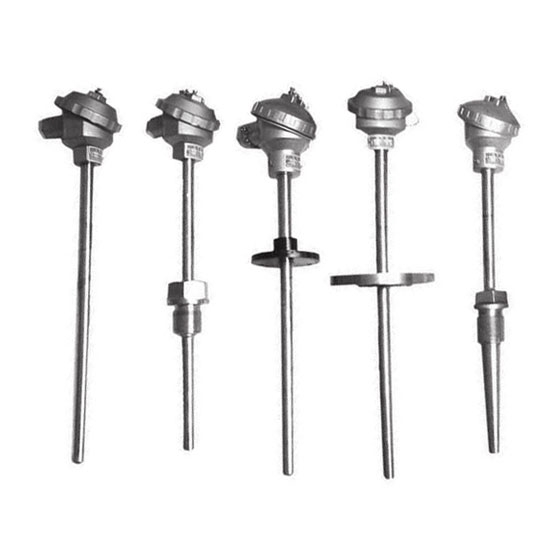

300~2150mm (Φ16 for I1, I2, I3, I4); 225~1150mm (Φ12 for I1, I2, I3, I4); 225~550mm (for I6)	B1: Single branch; B2: Double branch	I0: No thermowell; I1: No fixed device; I2: Fixing thread; I3: Movable flange; I4: Fixed flange; I5: Rectangular movable flange; I6: Taper thermowell and fixing thread	C3: Waterproof protection head; C4: Explosion-proof protection head	D0: Φ16mm; D1: Φ12mm

Application

Tips: Pt100 RTD sensor working principle
Pt100 is a kind of platinum resistance, and also a thermistor of positive temperature coefficient, that is, the resistance value rises with the increase of the temperature. Platinum resistance has high accuracy, suitable for neutral and oxidizing medium. It has good stability and can test a wide temperature range (-200~420℃). The most important thing is that platinum resistance has good linearity, that is, when the temperature changes one degree, the increase of resistance value is basically the same. Pt100 resistance value is 100 ohm at 0℃, 18.52 ohm at -200℃ and 175.86 ohm at 200℃. In addition to Pt100, the most commonly thermistor are Pt1000 (platinum resistance of 1000 ohm at 0℃) and Cu50 (copper resistance of 50 ohm at 0℃).
