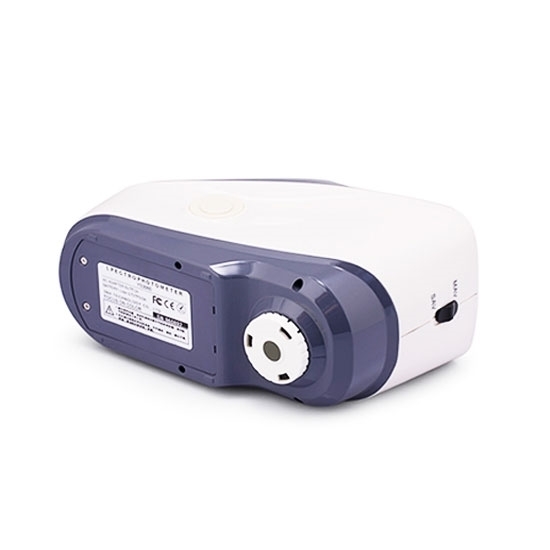

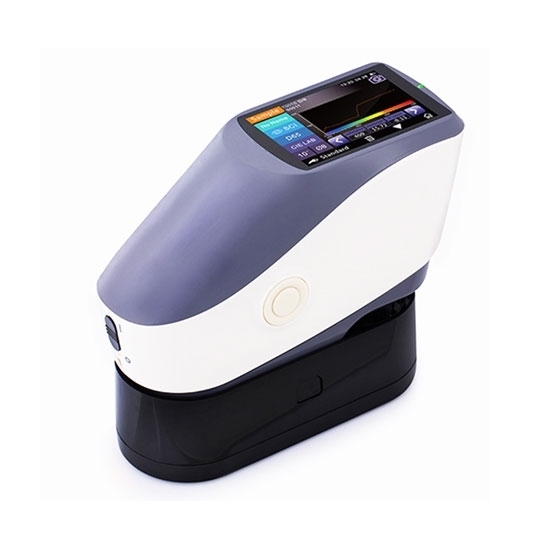

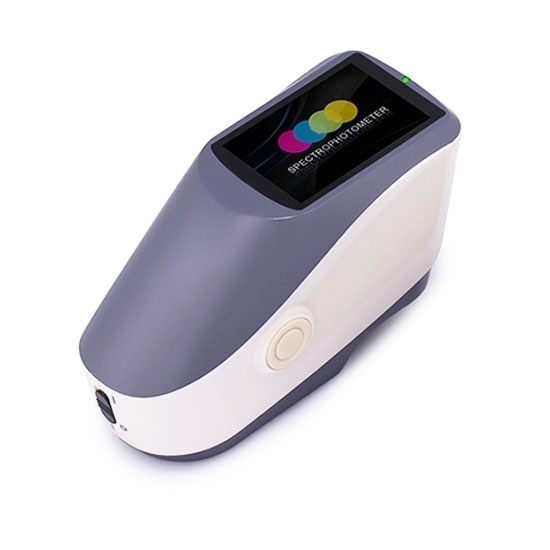

Portable Spectrophotometer Colorimeter, Caliber 4mm/8mm

0 reviews • Write a review

from

$4,429.26

Ex Tax: $4,429.26

Stock: In Stock
Model: RDDLZ-CM-YS3020
Weight: 1.00
SKU: RDDLZ-CM-YS3020

Available Options

Accessories

Measuring Aperture

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4mm/8mm compact portable handeld spectrophotometer color meter for paper, printing, ceramics, chemical industry, designed to provide accurate color measurement information.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	RDDLZ-CM-YS3020
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size	48mm
Light Source	Combined LED Light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%
Measuring Aperture	Customized Aperture: 8mm/4mm/1x3mm
Specular Component	SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00v, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F2, F7, F11
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	2.6s
Repeatability	MAV/SCI: ΔE*≤0.05
Inter-instrument Error	MAV/SCI: ΔE*≤0.2
Measurement Mode	Single Measurement, Average Measurement
Locating Method	Camera View Finder Locating
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	18477105mm
Weight	600g
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB/RS232
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

Packing List

No.	Name	Quantity
1	Spectrophotometer	1
2	Power adapter	1
3	Manual	1
4	Data cable	1
5	Built-in lithium battery	1
6	CD (including management software)	1
7	Black and white correction box	1
8	Protection cap	1
9	Universal test module (Optional match)	1
10	Powder test box (Optional match)	1

Details

Color Spectrophotometer Accessories

Note:

1. Universal Test Components
Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
Dimension: L*W*H=190x190x85 mm

2. Powder Test Box
Features: Easy to use; Focus on measuring powder.
Dimension: ø50X25mm

Applications

Tips: How does the portable spectrophotometer colorimeter improve the color fastness of silk?

Portable pectrophotometers color meter can help you improve your manufacturing process and test the durability of your textiles under specific environmental conditions to improve the color fastness of silk. When you use mordant and fabric dyes to process raw silk, you can first test the best color of the fabric when exposed to sunlight, rubbing and washing. By testing the dyed silk test sample with a spectrophotometer, you will see how quickly your product will fade under these conditions, and you can optimize your mordant and dye formulations to improve color fastness.

The portable spectrometer will set the initial color standard of the product (the color when the product is first dyed), and then you can compare future measurements to this standard. For example, if you dye a silk sample and use an aluminum mordant to set up the dye, you may find that your sample begins to fade after five washes. In response, you can use iron mordant and apply your silk to the polymer film to improve the fastness. To test whether these changes do have a positive effect on the color fastness of your silk, you can wash the sample five times to see if it improves color retention. In addition, once you have refined your manufacturing process and dye formulation, you can test future silk products to ensure they are consistent in color between batches.

Portable spectrophotometers colorimeter require only a small amount of silk sample to test color fastness and color consistency, making it a cost-effective solution for textile manufacturers such as silk. By using the Spectrophotometer to identify the most durable dyes and mordants, you will greatly improve the quality of your silk products and make the most of your limited time and resources.
