Nema 34 Bipolar Stepper Motor, 6A, 2 Phase 4 Wires

0 reviews • Write a review

from

$185.38

Ex Tax: $185.38

Stock: In Stock
Model: RDDLZ-STEP-21603406
Weight: 1.00
SKU: RDDLZ-STEP-21603406

Available Options

Short Description

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

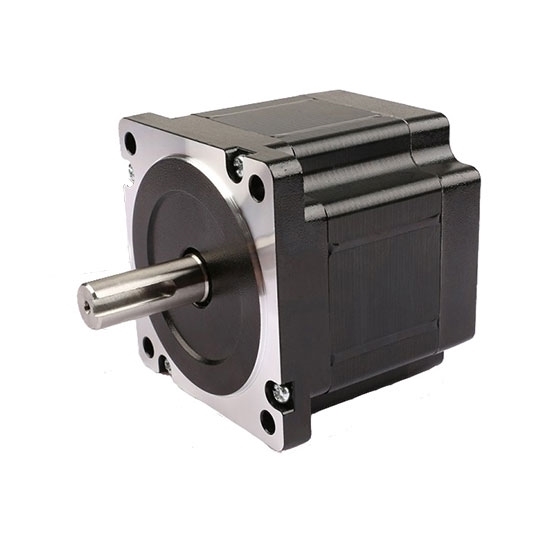

The Nema 34 stepper motor is a professional and high precision stepper motor with 1.8 deg. step angle (200 steps/revolution), 2 phase 4 wires, high holding torque of 12Nm, each phase draws current 6A.

Specifications

Basics	Model	RDDLZ2160-6004A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	160mm
	Weight	5.5kg
	Current	6A
	Resistance	0.7Ω
	Holding Torque	12Nm
	Motor Leads	4
	Rotor Inertia	4800g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Motor Connection

Tips: Reasons and solutions for reduction in torque frequency characteristic of the stepper motor

The relationship between output torque and control pulse of stepper motor is called torque frequency characteristic.
Feature: By taking the maximum load torque (start torque), the rotational velocity of the stepper motor will be increased gradually but the load capacity is reduced along with the increase in pulse frequency.
The reasons for the reduction in torque frequency characteristic of the stepper motor:

Influence of winding inductance: It takes certain time to rise and reduce the current in winding. When the pulse frequency is low, it can realize long power-on cycle of winding, large average value of current, high energy that can be obtained for the motor and high torque that can be maintained. However, when the pulse frequency is high, it can realize short power-on cycle of winding, small average value of current, little energy that can be obtained for the motor and reduction in torque that can be maintained.
Iron loss: Along with the rising frequency, the rotational velocity of the rotor is increased. Due to additional rotational EMF generated in rotor winding, the motor faces larger resistance torque and the eddy loss of iron core is also increased.

Measures for improving the high frequency of torque characteristic through two ways:

Resistance can be increased by reducing the time constant. To ensure the current in live current is not changed, it is also necessary to increase the power voltage while increasing the resistance.
Improve working mode. Adopt multi-phase exciting working mode. Due to the multi-phase exciting working mode, the power-on time for each phase is prolonged, then more energy can be obtained for the motor so that the output torque is increased.
