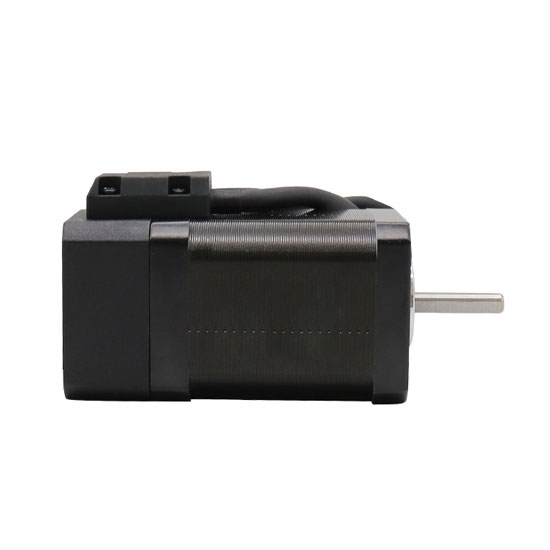

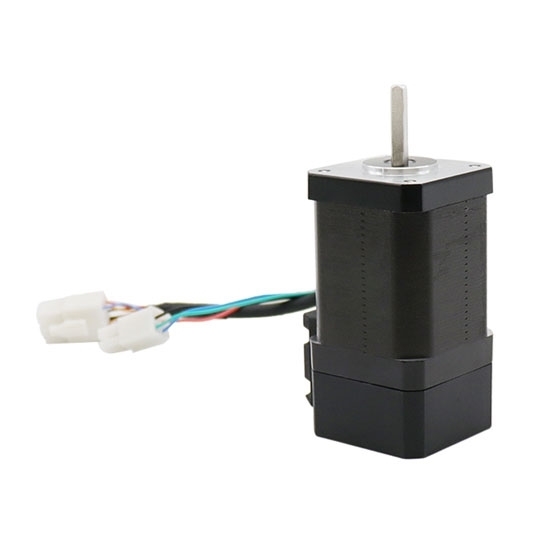

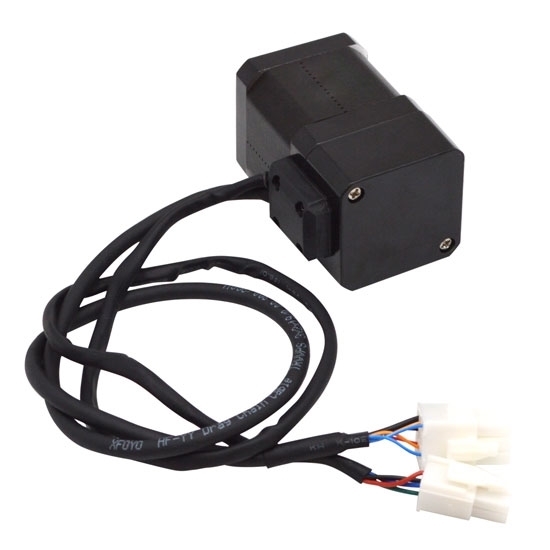

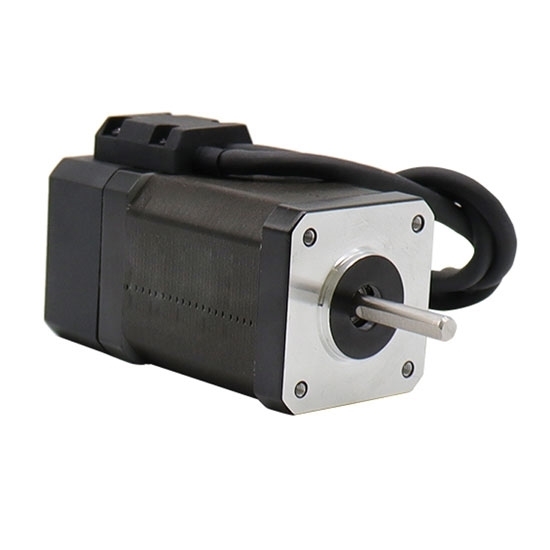

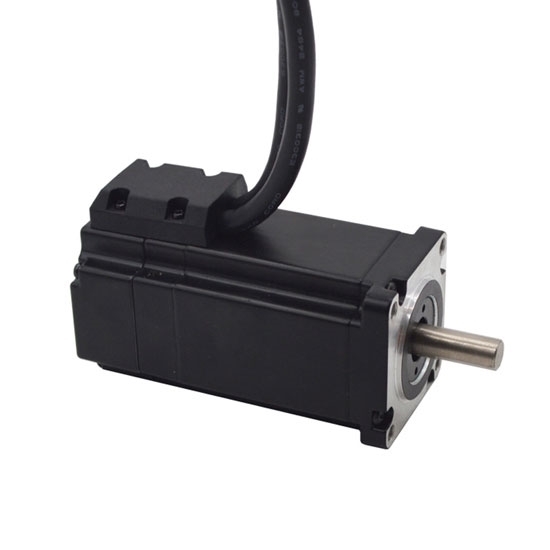

Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.5N·m

0 reviews • Write a review

from

$85.99

Ex Tax: $85.99

Stock: In Stock
Model: RDDLZ-STEP-17CL200
Weight: 1.00
SKU: RDDLZ-STEP-17CL200

Available Options

Input Pulse Voltage

With Matched Driver

Encoder Specification

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Closed loop bipolar stepper motor is a permanent magnet electric motor that converts electrical pulse signal into corresponding angular displacement or linear displacement. It is widely used in electronics manufacturing, sewing machine, semiconductor equipment, laser cutting, textile machinery and so on.

Physical Specification

Model Number: RDDLZ-FY42EL200BC1
Matched the Driver Model: RDDLZ-FYDB504T
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 68mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.36kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 2A
Holding Torque: 0.5N·m (50 N·cm, 72 Oz.in)
Phase Resistance: 1.35Ω
Phase Inductance: 2.8mH
Rotor Inertia: 77g·cm²
Encoder: A, B two-channel signal, 1000ppr (default)/2500ppr, 5V DC power supply

Dimensions (Unit: mm)

L=68mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: Reasons for stepper motor out of step

The speed is set too high and the torque is not enough.
The voltage is unstable during high-speed operation, so that the input current sometimes does not reach the rated current. It causes the output torque to drop, and finally leads to out of step.
The speed rises or falls too fast, causing the loss of step.
Excessive external resistance.
