Magnetostrictive Displacement Measurement Sensor 500mm

0 reviews • Write a review

from

$949.86

Ex Tax: $949.86

Stock: In Stock
Model: RDDLZ-MSR-B0500
Weight: 1.00
SKU: RDDLZ-MSR-B0500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

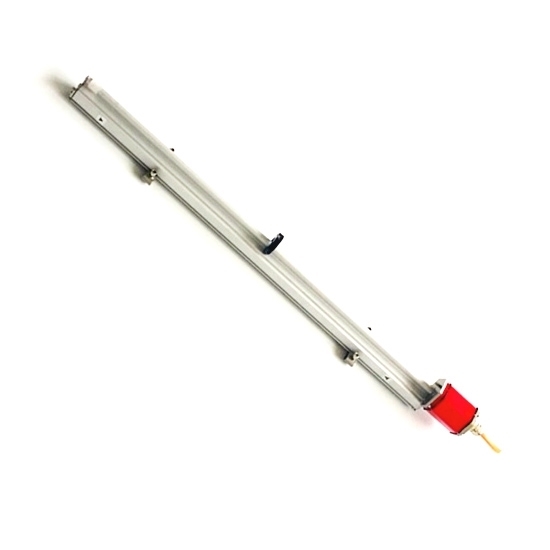

Magnetostrictive linear displacement sensor with measuring range 500mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Basics	Model	RDDLZ-MSR-B0500
	Measuring range	0~500 mm
	Shipping weight	3 kg
	Length	673.1 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Temperature excursion	≤0.001%FS
	Operating voltage	24V DC
	Current drain	5～16mA
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Operating temperature	-40℃~85℃
	Load characteristic	Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
	Output	0~5V; 0~10V; 0~20mA; 4~20mA
	Installation method	Fixed clip, with specific screw M5X20
	Magnet type	Slider magnet, levitating magnet
	Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Application of magnetostrictive sensors

Detect the position of servo cylinder piston.
Detect the position of lapping machine.
Detect the position of forging machine (obtain stable performance in speed control system).
Detect the position of other machines such as gantry machine (equilibrium of goal post).
Detect the position of injection machine.
Adjustment of railway and bridge (detect displacement of guide rail, control opening, lifting and closing of bridge).
Detect the position of of wood machinery.
Geodetic measurement system (detecting geological disasters such as earthquake and landslide, etc.).
Detecting displacement of port facilities (not detecting outdoors, large strokes and other types).
