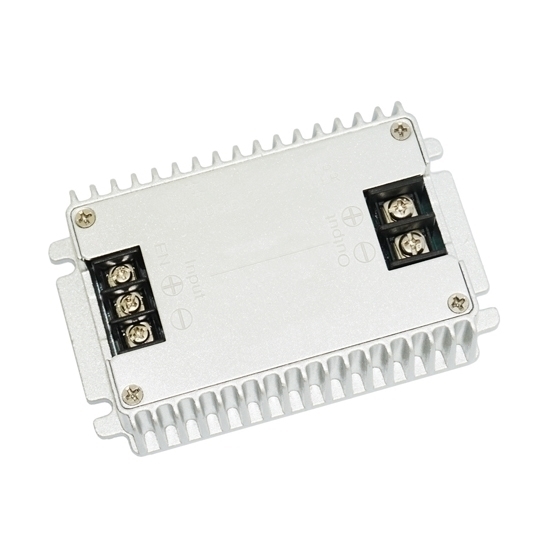

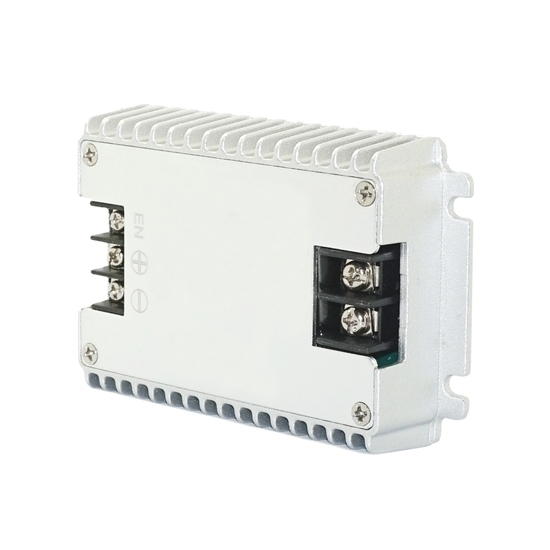

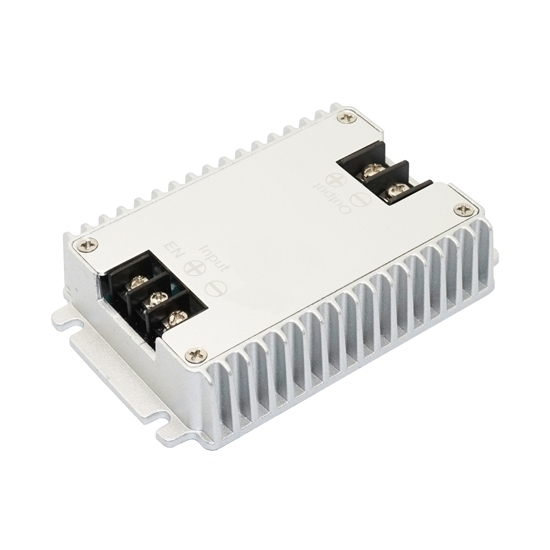

Isolated DC-DC Converter, 72V To 12V

0 reviews • Write a review

from

$93.69

Ex Tax: $93.69

Stock: In Stock
Model: RDDLZ-IDCDC-7212
Weight: 1.00
SKU: RDDLZ-IDCDC-7212

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

72V to 12V isolated DC-DC converter is a buck converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 12V and the maximum output current of 8 amps.

Features

100% full power, high stability output.
Isolated DC-DC converter uses high-quality thermal conductive silicone potting, waterproof, dustproof, shockproof, with die-casting aluminum alloy shell, small size, and easy installation.
Wide voltage input, built-in overcurrent, overvoltage, overtemperature, short circuit and other automatic protection functions.
CE, RoHS certification, up to 100,000 hours of service life.

Isolated DC-DC Buck Converter Specification

Model	RDDLZWGI08-72S12L (Click to view more specs)
Input	Rated voltage	72V
	Voltage range	50-90V
	Efficiency	92%
Output	Voltage	12V
	Max. rated current	8A
	Max. rated power	96W
	Voltage regulation	±2%
	Load regulation	±2%
	No load loss	70mA
	Ripple & noise	50mV
Environment	Working temperature	-40 ~ +80℃
	Working humidity	5% ~ 95%RH
	Storage temperature	-55 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP68
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	250g
	Size	1107023mm

Dimensions (Unit: mm)

Tips: What are the benefits of isolated DC-DC converters?

The greatest advantage of isolated DC-DC converters is likely to be security compliance, especially in mains supply equipment.

Basic insulation: a single layer of insulation that provides shock protection.
Supplementary insulation: Add another layer on top of the basic insulation to provide redundancy.
Enhanced insulation: A single barrier provides double basic protection.
