2.5μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.98

Ex Tax: $1.98

Stock: In Stock
Model: RDDLZ-FC-CBB61-025
Weight: 1.00
SKU: RDDLZ-FC-CBB61-025

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 Wire ceiling fan capacitor capacity value 2.5μF, voltage 450V AC, small fan capacitor can control the start and stop mechanism of different types of ceiling fan motors.

Specification

Model: RDDLZ-FC-CBB61-025
Capacity: 2.5μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 37(W) x 15(L) x 26(H)mm
Certificate: CE, CQC

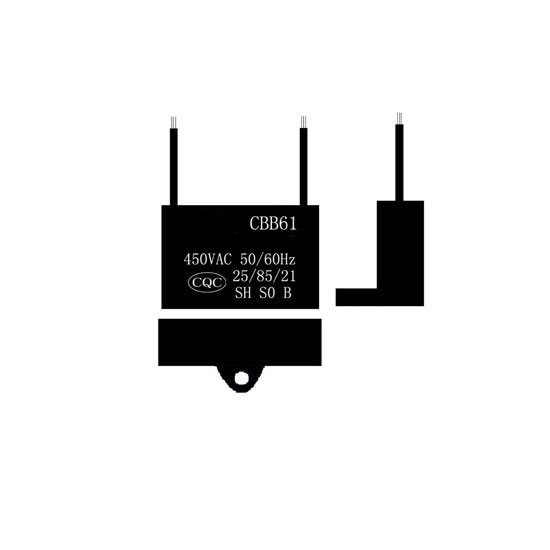

2.5μF Ceiling Fan Capacitor 2 Wire Wiring Diagram

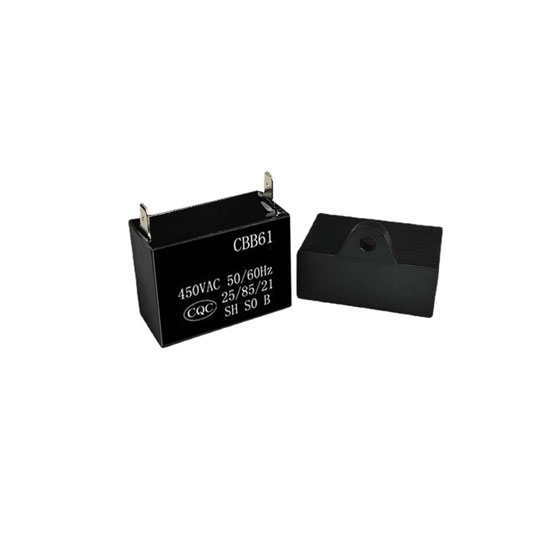

Ceiling Fan Capacitor Details

Tips: How to balance the fan blades of the ceiling fan?

Power off to remove the fan. First remove the blade, to a piece of the original not deformed as a guideline, the deformation of the blade overlap in the blade not deformed, you can find out the location of the deformation, it can be adjusted. After adjusting the blade installed in the rotor, the fan is lifted from the ground thirty, forty centimeters (convenient adjustment) on the ground to find a fixed point to measure the blade tail high, low point, three blade balance can be.
