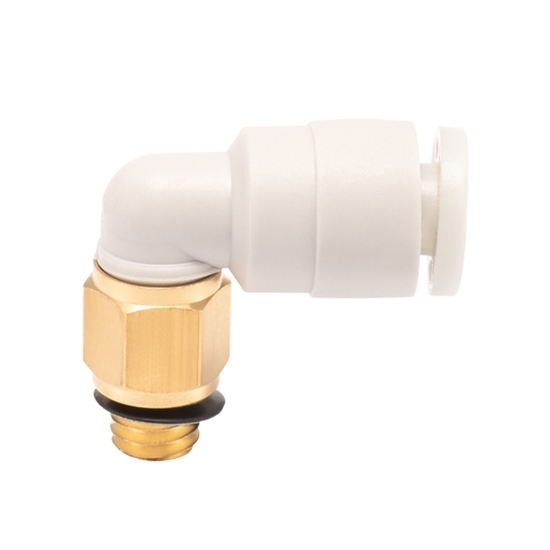

Hose Quick Connector, M Type

0 reviews • Write a review

from

$4.85

Ex Tax: $4.85

Stock: In Stock
Model: RDDLZ-QC-M02
Weight: 1.00
SKU: RDDLZ-QC-M02

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hose quick connector with 03/04/06 mm input cannula diameters is suitable for various watering devices such as nozzle, sprayers, and sprinklers. The M-type hose connects are easy to connect and disconnect without leakage, designed for water and air.

Specifications

Model	RDDLZ-KJL
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ3	RDDLZ-KJL03-M3	2.1
	RDDLZ-KJL03-M5	2.5
	RDDLZ-KJL03-M6	2.6
	RDDLZ-KJL03-01S	6.7
Φ3.2	RDDLZ-KJL23-M3	2.1
	RDDLZ-KJL23-M5	2.5
	RDDLZ-KJL23-M6	2.6
	RDDLZ-KJL23-01S	6.7
Φ4	RDDLZ-KJL04-M3	2.2
	RDDLZ-KJL04-M5	2.7
	RDDLZ-KJL04-M6	2.8
	RDDLZ-KJL04-01S	6.8
Φ6	RDDLZ-KJL06-M5	3.2
	RDDLZ-KJL06-M6	3.3
	RDDLZ-KJL06-01S	6.4

Tips: Features of the quick connector

Time and labor-saving: Save time and labor when disconnecting and connecting air and water pipes through quick couplings.
Environmentally friendly: When the quick connector is connected and disconnected, water will not spill and protect the environment.
Easy to transport: Large equipment or hydraulic tools that need to be easily portable can be transported by using quick couplings and then assembled and used after reaching the destination.
Economical: All the above advantages create economic value for customers.
