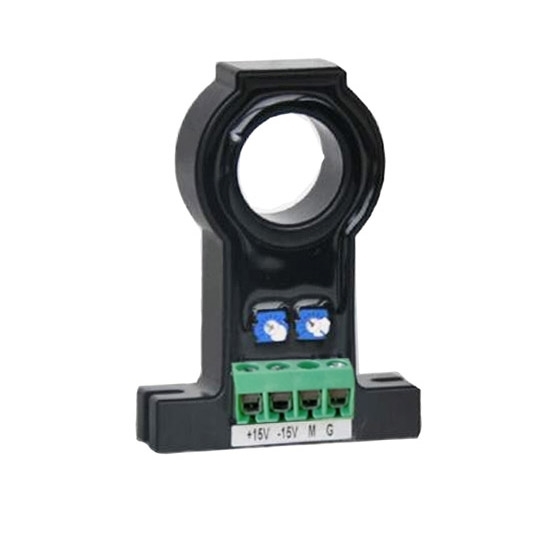

Hall Effect Current Sensor 50A/100A/200A/500A/800A/1000A

0 reviews • Write a review

from

$77.75

Ex Tax: $77.75

Stock: In Stock
Model: RDDLZ-CUS-ACDC2000
Weight: 1.00
SKU: RDDLZ-CUS-ACDC2000

Available Options

Short Description

Output Signal

Hole Diameter Selection

Measuring Range (for 20mm)

Measuring Range (for 40mm)

Measuring Range (for 32.5mm)

Measuring Range (for 60mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hall effect current sensor has measuring range of AC/DC 50A/100A/200A/300A/400A/500A/600A/800A/1000A/1200A to 1500A.

Specification:

Model	RDDLZ-AHKC-E	RDDLZ-AHKC-LT	RDDLZ-AHKC-EA	RDDLZ-AHKC-EB
Shipping weight	1kg
Hole diameter *	20mm	32.5mm	40mm	60mm
Measuring range of input current *	AC/DC 0-50A ~ 0-500A	AC/DC 0-100A ~ 0-800A	AC/DC 0-200A ~ 0-1500A	AC/DC 0-200A ~ 0-1500A
Output signal *	0-4VDC, 0-5VDC
Zero offset voltage	±20mV
Offset voltage drift	≤±1.0mV/℃
Linearity	≤0.2%FS
Power supply	±15VDC
Accuracy	1.0%F.S.
Bandwidth	0~20kHz
Response time	≤5us
Withstand voltage	AC 2500V (between input, output and power supply)
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Humidity	≤95%RH (no dew formation, no corrosive gas)
Elevation	≤3500m
Measuring method	Through-hole type
Installation	Screw fixation

50A to 1500A AC/DC current sensor dimensional diagram:

Model	Dimension (mm)
Model	W	H	D	Φ (Hole diameter)	M (Mounting)	N (Mounting)
RDDLZ-AHKC-E	53	72	16	20	47	-
RDDLZ-AHKC-LT	90	73.5	25	32.5	74.5	71
RDDLZ-AHKC-EA	100	108	30	40	78	-
RDDLZ-AHKC-EB	120	112	30	60	98	-

50A to 1500A AC/DC current sensor wiring diagram:

Details

Tips: Selection of current sensors in communication base station
The current sensor can realize the real-time management of the mobile communication base station through the centralized monitoring of the communication power supply. The management personnel can manage the working state of each communication base station in the remote centralized control center, and the technician can also carry on the system maintenance to the base in the first time. In the specific design of a new base, or the need to retrofit the existing base, it should pay attention to the following points when selecting current sensor:

First of all, it need to check if the site equipment has been installed, the current sensor has split-core and closed-core type. Split-core current sensor has high accuracy 0.5%FS, while closed-core current sensor has accuracy 1.0%FS. It needs to choose the split-core type in the case of wire cannot be disconnected. It also needs to consider wheather the wire can be disconnected when replacing the current sensors.
In addition, when selecting current sensors, it needs to pay attention to the environment temperature and moisture conditions and it needs to clarify the state of the environment to RDDLZ sales.
Finally, it is important to note that when choosing to the DC current sensor for monitoring in the battery group, it is necessary to pay attention to whether the reverse current needs to be monitored because there is a charge and discharge problem with the battery.
