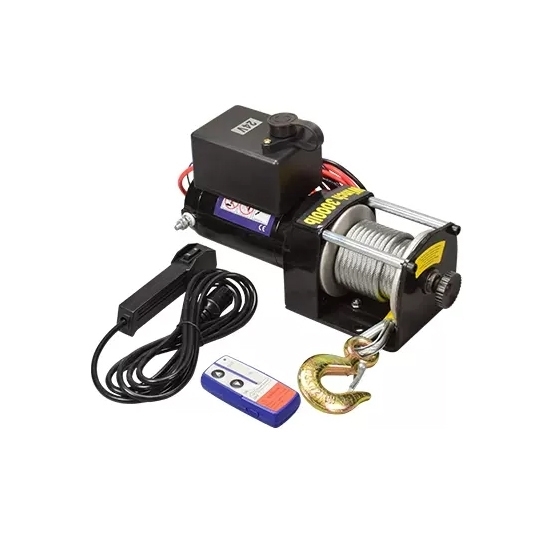

3000 lbs 12V/24V ATV Electric Winch comes with the upgraded accessory kit, which includes a set of wired and wireless remote controller tools, control box, cable steel, universal mounting plate, hook, and roller fairlead to offer you an excellent working performance. This best mini winch is the perfect match for your ATV in any situation with its high-quality and sturdy structure, powerful motor, and wireless remote control.

Features

• High efficiency 1.1kW/1.4hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
• 3000 lbs small pull capacity winch for ATV/UTV with compact structure and affordable price.
• Dual remote control mode, wired remote control and wireless remote control.
• Free spooling with sliding ring gear, easy to operate.
• Designed to keep dust and water out with an IP67 waterproof rating.
• It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
• 100% testing on winch pulling capacity and function before shipping.

Specification

3000 lbs of tension at different rope lengths

Dimension (Unit: mm)

Details

Tips: Working principle of electric winch

Working principle of the electric winch: The electric motor of the electric winch is driven by the battery on the vehicle, it transmits the power to the mechanical transmission device, and then drives the winch drum to rotate and wind the cable. The initial design carrying capacity of a cable determines its diameter and length. The cable is wound on a winch drum and passed through the cable guide. The ends of the rope are looped to connect the anchors. The winch reel is a cylindrical device wrapped around a cable. It is driven by a motor and can change its direction of rotation under the control of a remote controller. When using a winch with a certain angle requirement, the cable guide will guide the rope around the winch drum, and can reduce the danger that the winch bracket or bumper may cause when the cable is recycled. It is often fixed outside the winch bracket or bumper.

The transmission mechanism is composed of planetary gears, which converts the energy generated by the motor into powerful traction. The design of the drive system makes the electric winch light and compact. When the motor stops working and the cable is under load, the brake system will automatically lock the drum to prevent the cable from coming loose and slipping. The clutch can be operated by hand to change the disengagement or locking state of the drum from the transmission system, thereby changing the state of the drum idling or locked to the transmission system. The control valve converts the vehicle battery's power into kinetic energy through an electromagnetic coil, enabling the operator to change the direction of rotation of the winch drum.
