Electromagnetic Relay, DPDT, 12/24/110/220V Coils

0 reviews • Write a review

from

$52.99

Ex Tax: $52.99

Stock: In Stock
Model: RDDLZ-EMR-HH52P
Weight: 1.00
SKU: RDDLZ-EMR-HH52P

Available Options

Coil Voltage(V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

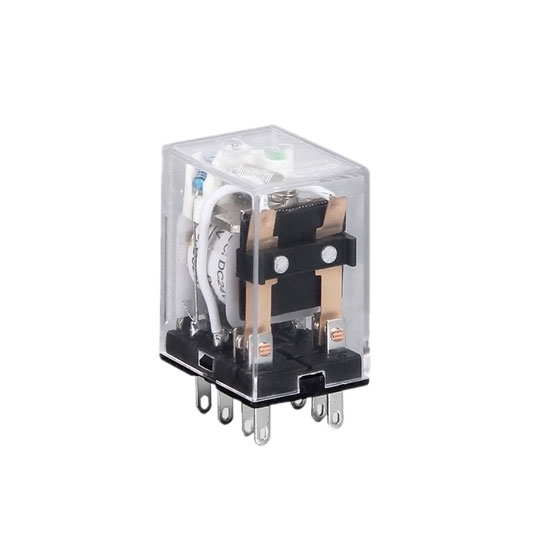

8-pin DPDT electromagnetic relay is in small size, easy to drive and has a wide range of applications like electronic equipment, household appliances, office automation etc.

Specification

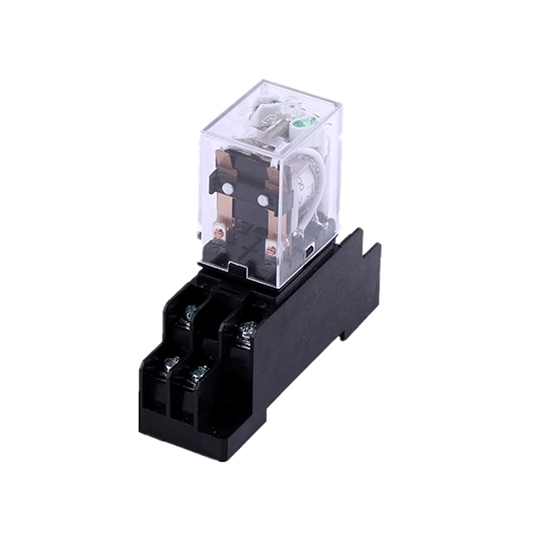

Basics	Model		RDDLZ-HH52P/MY2NJ (Relay with Socket)
	Dimension (LWH)		27×21×35mm
	Weight		30g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug-in
	Number of Pins		8
Technical Parameters	Contact Form		DPDT (2 Form C)
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		5A/28V DC, 5A/240V AC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage (Optional)		12V DC, 24VDC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1000V AC 50Hz/1min
		Between adjacent contact	≥1000V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form DPDT, and another contact forms 2NO (2 Form A) and 2NC (2 Form B) are still available. What's more, please kindly note that What's more, please kindly noted that other coil voltages are also available (DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

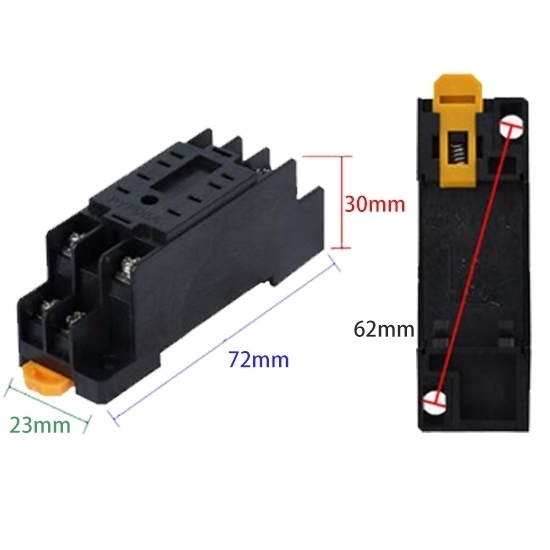

Dimensions & Connection Diagram
Details

Tips: Working principle of electromagnetic relay

Electromagnetic replay uses electromagnet to control “on” or “off” status of operating circuit. Thus how an electromagnetic relay works specifically?

Electromagnetic relay consists of electromagnet, armature, spring, movable contact and stationary contact. When applying voltage to both ends of a coil, the coil will be flowed with current and generate electromagnetic effect. The electromagnet will attract armature to the iron core against tension of spring, so as to pull the movable contact of the armature to the stationary contact (normally open contact, or NO). When users cut off power, attraction of the electromagnet will disappear and the armature will restore its position under tension of the spring to release the movable contract from the stationary contact (normally closed contract or NC). The pulling and releasing are used to control opening and closing of the circuit. Normally open and closed contacts respectively refer to the stationary contract when the coil is cut off from power and the stationery contract when the coil is connected to power.
