- Stock: In Stock
- Model: RDDLZ-EPTP-DSY
- Weight: 1.00
- SKU: RDDLZ-EPTP-DSY
Electric pressure test pump is a type of hydraulic pump. It is used for testing pressure value and sealing performance, applicable objects are pressure vessel, water pipe, PPR pipe, and other plumbing.
Specification:
| Model | RDDLZ-DSY-25 | RDDLZ-DSY-60 | RDDLZ-DSY-100 | RDDLZ-DSY-60A |
| Rated Voltage | 220V | |||
| Working Pressure | 2.5 MPa (363 psi) | 6 MPa (870 psi) | 10 MPa (1450 psi) | 6 MPa （870 psi） |
| Motor Power | 0.2 hp (150W) | 0.3 hp (250W) | 0.5 hp (350W) | 0.5 hp (400W) |
| Flow Rate | 180 L/H | 360 L/H | ||
| Weight | 11 kg | 12.5 kg | 13.5 kg | 17 kg |
| Dimension (L*W*H) | 360*220*130mm | 400*300*270mm | 400*300*290mm | 400*300*270mm |
| Hose Port | G1/2" (DN15, 20mm) | |||

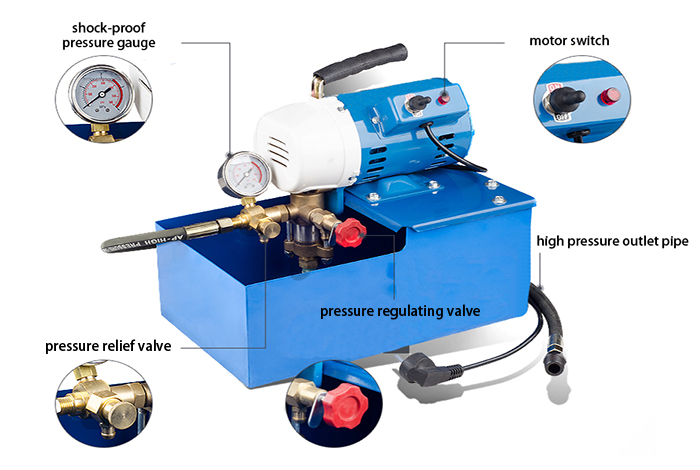

Electric Pressure Test Pump Structure Diagram:

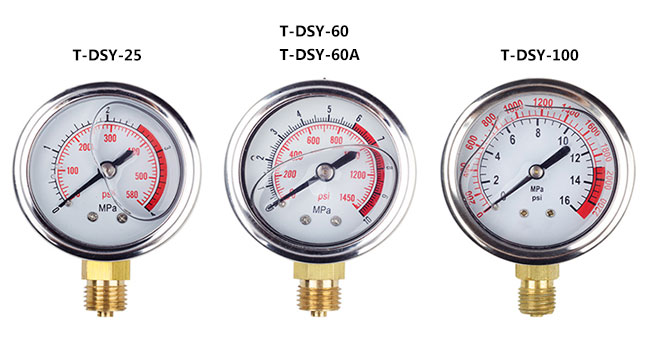

Pressure Gauge Diagram:
Tips: What is Electric Pressure Test Pump?
Electric pressure test pump belongs to the reciprocating piston pump, the motor drives the plunger, drives the slider movement and then infuses the water into the tested object, so that the pressure gradually rises. The machine is composed of pump body, switch, pressure gauge, water tank, motor and so on.
Electric pressure test pump (hereinafter referred to as pressure test pump), suitable for water or hydraulic oil medium, pressure test on all kinds of pressure vessels, pipes, valves, etc., also used for hydraulic energy, to provide the required pressure, suitable for chemical industry, construction, plumbing, oil and coal, smelting shipbuilding and other industries.
Electric pressure test pump has the characteristics of compact structure, reasonable, labor saving operation, light weight, easy maintenance and rust prevention.
