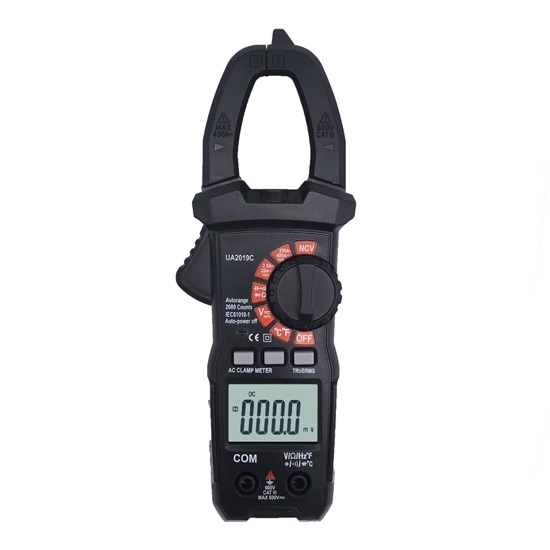

Digital Clamp Meter AC 400 Amp With TRMS/NCV/Temperature/Capacitance

0 reviews • Write a review

from

$81.89

Ex Tax: $81.89

Stock: In Stock
Model: RDDLZ-CLAM-2019C
Weight: 1.00
SKU: RDDLZ-CLAM-2019C

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: How to measure AC current with a clamp meter?
The clamp meter is a special digital multimeter with clamp head for current measurement. So make sure that the test probes are removed from the clamp meter when using the clamp head to measure AC current. Then follow the operation steps below step by step.

Rotate the measurement function selection dial to the AC current.
Press the trigger to open the clamp, pass the wire to be measured into the centre of the clamp, and then slowly release the trigger until the clamp is fully closed.
Read the measurement result from the LCD.

Note: The clamp meter can only measure one current conductor at a time. If two or more current conductors are measured at the same time, the measurement will be inaccurate.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics	Model	RDDLZ-UA2019C
	Weight	0.4kg
	Size (LWH)	1846632.5mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	25mm
	Woring environment	Temperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	AC current	400A	±(1.5%+5 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.2%+5 digits)
	Resistance	10MΩ	±(1.0%+2 digits)
	Frequency	1000kHz	±(0.3%+5 digits)
	Capacitance	100mF	±(4.0%+3 digits)
	Temperature	-40℃~+1000℃ (-40℉~1832℉)	±(1.0%+3 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	NCV	Non-contact voltage test, with buzzer and indicator
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Back light	Back light for LCD display
	Inspection light	Inspection light for clamp operation

RDDLZ
