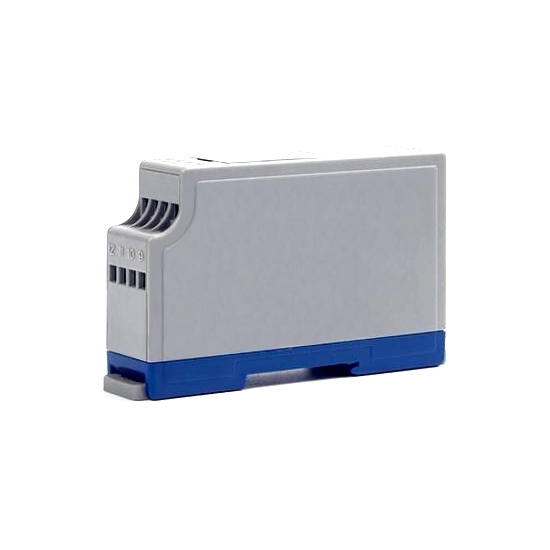

DC Voltage Transducer 10mV To 1000V, Power Supply DC 12V/24V/36V

0 reviews • Write a review

from

$195.56

Ex Tax: $195.56

Stock: In Stock
Model: RDDLZ-VOS-DC1000S
Weight: 1.00
SKU: RDDLZ-VOS-DC1000S

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This SKU RDDLZ-VOS-DC1000S is out of stock.
We recommend you another isolated DC voltage sensor RDDLZ-VOS-DC1000, which has measuring range from DC 10mV, 50mV, 75mV, 5V, 75V, 150V, 300V, 500V to 1000V and power supply DC 12V/24V.

DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.

Specification:

Model	RDDLZ-WBV344M05
Shipping weight	1kg
Measuring range of input voltage *	DC 0-10mV ~ 0-1000V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal *	DC 0-20mA, 4-20mA
Power supply	DC 9-36V
Accuracy	0.2%F.S.
Load capacity	300Ω
Response time	≤20ms
Temperature drift	50*10^-6/℃
Static power consumption	0.32W
Isolation features	Isolation between input, output and power supply
Isolation voltage	DC 2.5kV, 1 min
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Protection features	Surge (inrush) immunity: IEC61000-4-5 Electrostatic discharge immunity: IEC61000-4-2 Radio frequency electromagnetic field radiation immunity: IEC61000-4-3 Electrical fast transient burst immunity: IEC61000-4-4 Conducted immunity of radio frequency electromagnetic field: IEC61000-4-6
Mean time between failures	＞50000h
Housing material	PC + Fire-retardant ABS
Wiring	Terminal connection

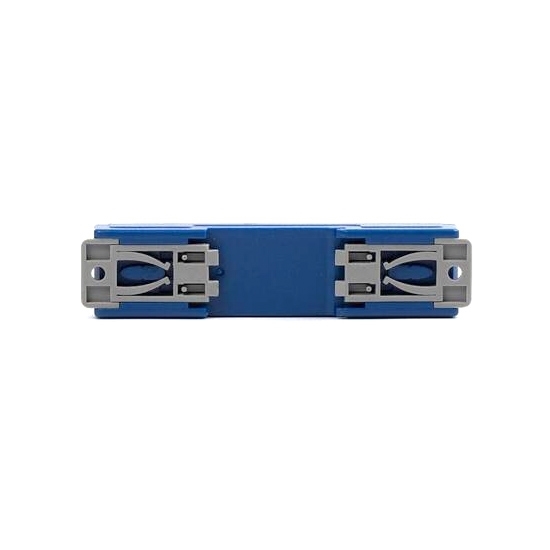

Installation	DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

DC voltage transducer 10mV to 1000V dimensional drawing (unit: mm):

DC voltage transducer 10mV to 1000V wiring diagram:
