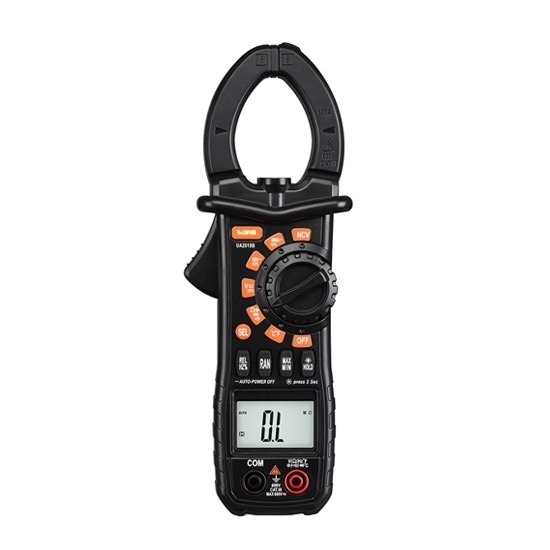

Clamp Meter With 600A AC Current/Capacitance/Temperature/TRMS/NCV

Clamp Meter With 600A AC Current/Capacitance/Temperature/TRMS/NCV
Clamp Meter With 600A AC Current/Capacitance/Temperature/TRMS/NCV
0 reviews • Write a review
from
$103.89
Ex Tax: $103.89
  • Stock: In Stock
  • Model: RDDLZ-CLAM-2018B
  • Weight: 1.00
  • SKU: RDDLZ-CLAM-2018B

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital clamp meter has AC current range 0-600A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 36mm, 4 digit display and maximum value 5999.

Specification:

BasicsModelRDDLZ-UA2018B
Weight530g
Size (L*W*H)210*78*35mm
Display4 digit LCD display
Maximum display value5999
Power supplyDC 4.5V, 3 AAA batteries
Maximum jaw opening size36mm
Woring environmentTemperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:＜75%
Storage temperature-10℃~+50℃ (14℉~122℉)
AccessoriesA pair of test probes, a pair of temperature probes, a user manual, 3 AAA batteries
FunctionsItemRangeAccuracy
AC current600A±(3.0%+10 digits)
Inrush current600A±(5.0%+60 digits)
DC voltage600V±(0.8%+5 digits)
AC voltage600V±(1.5%+10 digits)
Resistance20MΩ±(1.2%+3 digits)
Frequency100kHz±(3.0%+10 digits)
Capacitance100mF±(4.0%+3 digits)
Temperature-40℃~+1000℃ (-40℉~1832℉)±(1.0%+3 digits)
Duty ratio0.1%~99.9%±(3.0%+3 digits)
Special functionsTRMSTrue RMS measurement for sine wave signal
NCVNon-contact voltage test, with buzzer and indicator
Diode testDisplay forward voltage value of diode
On-off buzzerContinuity test buzzer
Data holdHold the reading when taking a measurement
Automatic power offAutomatic power off when 15 minutes no operation
Overload protectionOverload protection for 100% range
Range selectionAutomatic range selection and manual range selection
Back lightBack light for LCD display
Inspection lightInspection light for clamp operation
LED torchA LED torch for night lighting

Details

Tips: How to measure the temperature by using a clamp meter?
Do not enter a voltage higher than 60V DC or 30V AC in temperature measurement function to avoid human body damage or clamp meter damage.

  1. Turn the switch to the temperature measurement position and select (press 'SEL') Celsius or Fahrenheit as required.
  2. Connect the negative terminal (black) and the positive terminal (red) of the K type thermocouple to the COM input jack and temperature input jack separately.
  3. The other end of the thermocouple (test side) close to the surface of the measured object.
  4. The measured temperature value will be read by the LCD display.

Note: The highest measurement temperature of K-type thermocouple in accessory is 250 ℃ (482℉).
