Circular Connector, 2/3/4/5/6/7/8/9/10 Pin, M16

0 reviews • Write a review

from

$48.83

Ex Tax: $48.83

Stock: In Stock
Model: RDDLZ-CIRCN-16M
Weight: 1.00
SKU: RDDLZ-CIRCN-16M

Available Options

Item

Number of Pins

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

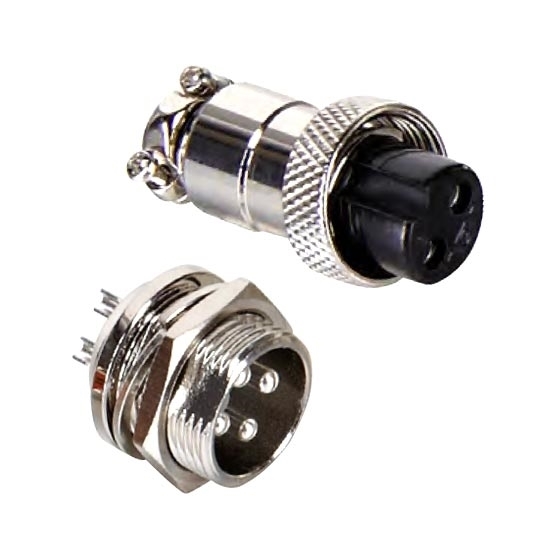

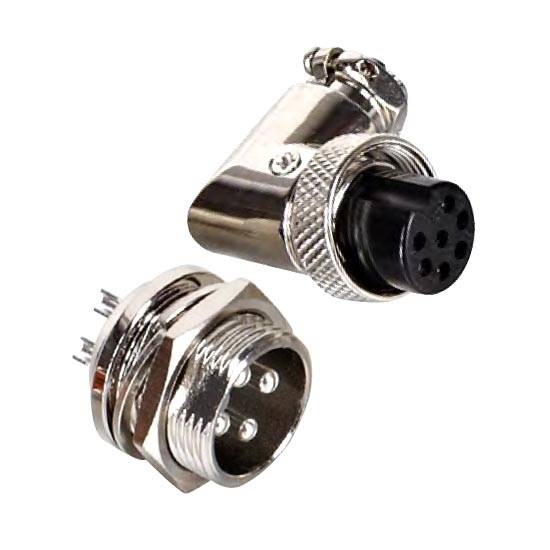

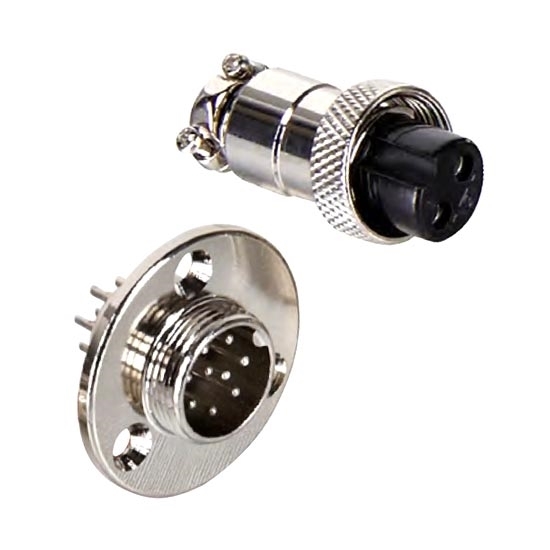

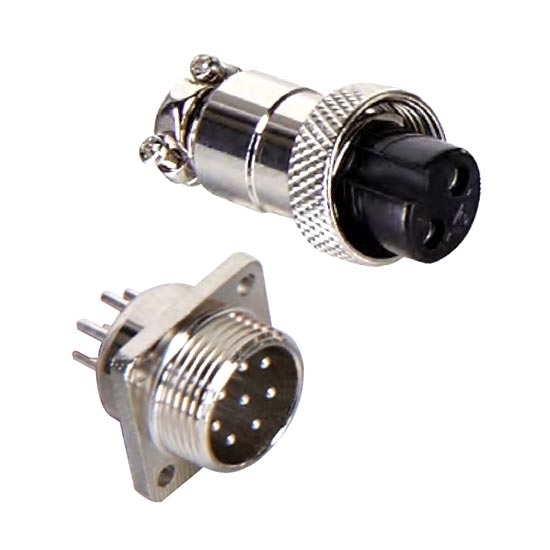

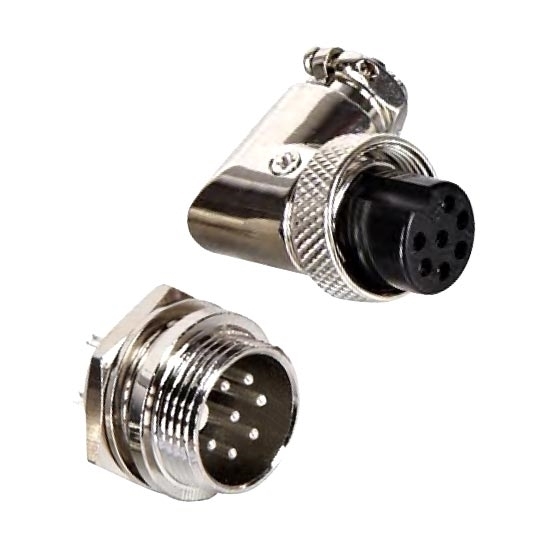

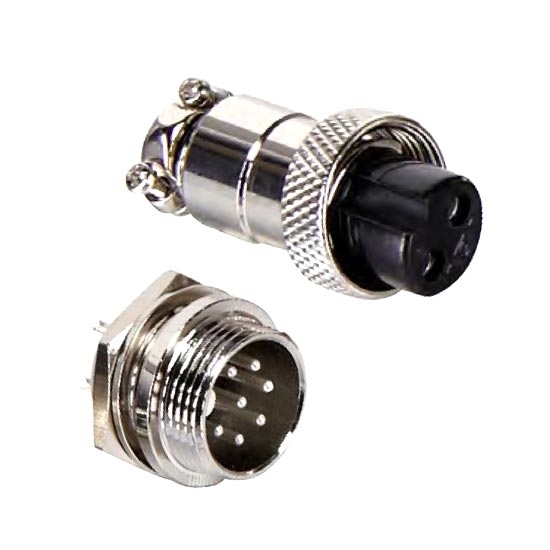

Circular connector has 2/3/4/5/6/7/8/9/10 Pin to select.

Specification:

Model	RDDLZ-CIRC-16M
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with nickel plate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ7.5mm~≤Φ8.5mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7	8	9	10
Rated current/voltage	30A-125V	30A-125V	30A-125V	16A-125V	8A-125V	8A-125V	8A-125V	8A-125V	8A-125V
Operating voltage	AC 200V	AC 200V	AC 200V	AC 250V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	1500	1500	1500	1500	1500	1500	1500	1500	1500
Contact resistance at 1A (MΩ)	5	5	5	5	5	5	5	5	5
Solder cup diameter Ф (mm)	1.6	1.6	1.6	1.2	0.9	0.9	0.9	0.9	0.9
Pin diameter Ф (mm)	2.45	2.45	2.45	2	1.15	1.15	1.15	1.15	1.15

Pin assignments:

Dimensional drawing (unit: mm):

Tips: Attachment of circular connector
Attachment is divided into structural attachment and mounting attachment. Structural attachments include rand, locating key, locating pin, guiding pin, connecting ring, cable clamp, gasket, waveform spring, shielding reed, seal ring and sealing gasket. Mounting attachments include bolt, screw, screw rod and spring ring.
