Cable Drag Chain, 60 X 100mm

0 reviews • Write a review

from

$98.46

Ex Tax: $98.46

Stock: In Stock
Model: RDDLZ-CDC-H60
Weight: 1.00
SKU: RDDLZ-CDC-H60

Available Options

Short Description

Model

Length

Bending Radius

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

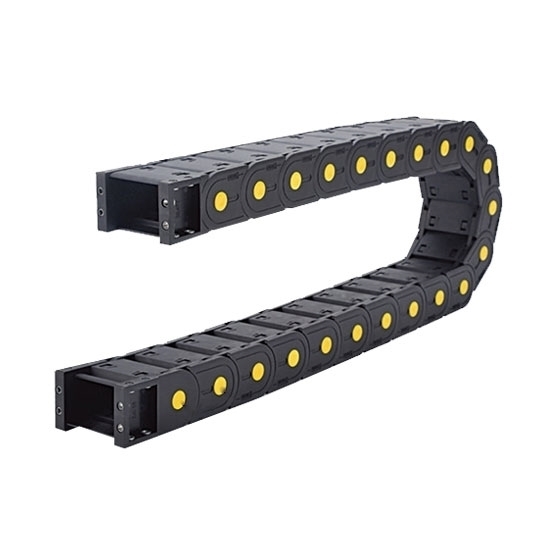

60 x 100mm black cable drag chain for sale, inner height 60mm, inner width 100mm, cable drag chain length can be customized. Widely used in CNC machine tools, electronic equipment, counting devices and other equipment.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	RDDLZ-CDC-H6060	RDDLZ-CDC-H60100	RDDLZ-CDC-H60150	RDDLZ-CDC-H60200	RDDLZ-CDC-H60250
Inner Height	60	60	60	60	60
Inner Width	60	100	150	200	250
Outer Height	80	80	80	80	80
Outer Width	91	131	181	231	281
Bending Radius ®	125mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm
Open Mode	Bridge type	Bridge closed	Bridge closed	Bridge type	Bridge type
Pitch Distance	66
Bridge Weight	2.65kg	2.81kg	2.98kg	3.26kg	3.39kg
Closed Weight	/	3.43kg	3.82kg	4.45kg	/

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 91mm, excluding the number of joints per meter= 11, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	125	150	200	250	300	400	500
H	330	380	480	580	680	880	1080
D	256	281	331	381	431	531	631
K	610	688	845	1002	1159	1473	1787

Dimension	RDDLZ-CDC-H6060	RDDLZ-CDC-H60100	RDDLZ-CDC-H60150	RDDLZ-CDC-H60200	RDDLZ-CDC-H60250
A	30	30	30	30	30
B	42	42	42	42	42
C	82	122	177	222	272
D	97	137	187	237	287
E	16	16	16	16	16
Aperture (φ)	8	8	8	8	8
