80A 60V 4800W Variable DC Power Supply

0 reviews • Write a review

from

$1,571.39

Ex Tax: $1,571.39

Stock: In Stock
Model: RDDLZ-VDCPS6080K
Weight: 1.00
SKU: RDDLZ-VDCPS6080K

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

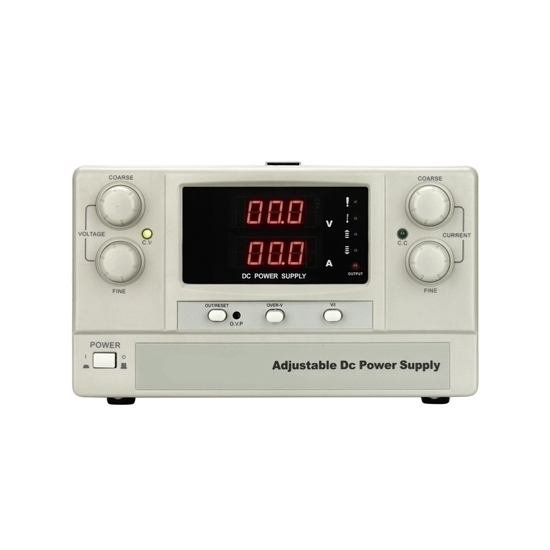

80 amp 60 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential device for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	RDDLZ-JK6080K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-80A
Output Power	4800W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

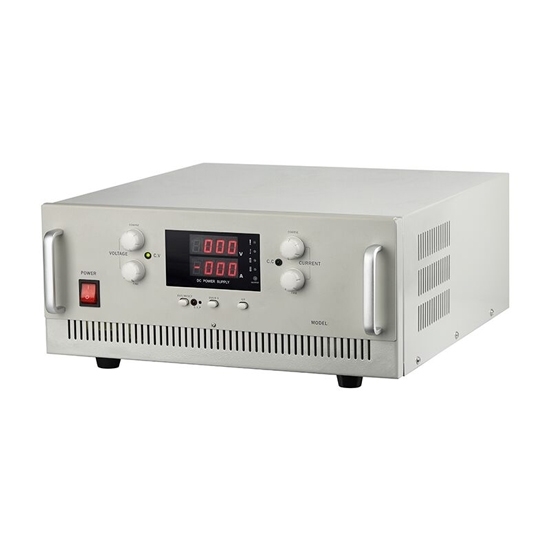

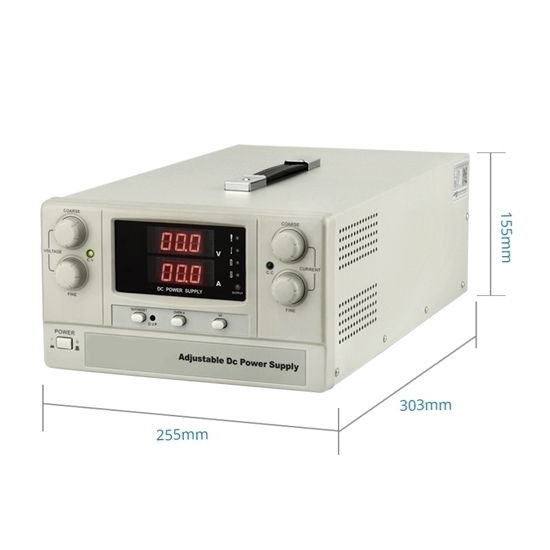

Size	303 (L) x 255 (W) x 155 (H) mm (220V)/570 (L) x 520 (W) x 270 (H) mm (110V)
Weight	13kg (220V)/24kg (110V)

Detail

Tips: Can a variable DC power supply simulate different electrical conditions?

Yes, a variable DC power supply can simulate different electrical conditions by allowing users to adjust the voltage and current outputs. By manipulating these parameters, it can replicate diverse scenarios encountered in electrical systems. For example, simulating low voltage conditions can help test how devices operate under reduced power, while adjusting current levels can mimic various load conditions. This flexibility is crucial for testing and validating electronic components and systems under different operating conditions, ensuring their reliability and performance across a range of scenarios. Variable DC power supplies are essential tools in electronics laboratories, providing engineers and technicians with a versatile means to assess and troubleshoot the behavior of devices in diverse electrical conditions.
