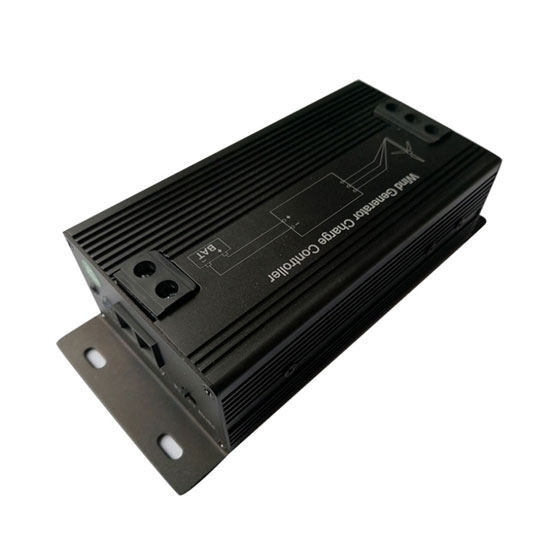

800W 12V/24V/48V Wind Turbine Charge Controller

0 reviews • Write a review

from

$171.62

Ex Tax: $171.62

Stock: In Stock
Model: RDDLZ-WTC-800
Weight: 1.00
SKU: RDDLZ-WTC-800

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Phase ac wind turbine charge controller 800W, can effectively improve the efficiency of wind power generation, LED display, turbine charge controller shell is made of aluminum shell material, and the heat dissipation function is fast.

Note:

The controller needs to be selected according to the power of the wind turbine and the battery voltage.

Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification:

Model	RDDLZ-WTC-800
Control System Rated Voltage	24V/48V (Automatic recognition voltage) RDDLZ recommends the same generator voltage as the battery voltage
Wind Turbine Rated Power	800W
Battery Protection	15V/29V/58V
Temperature Compensation (Optional)	8mV/°C (Adjustable) -20~65°C
Working Environment Temperature	-20~+55°C 35~95%RH
Storage Environment Temperature	-30~+65°C
Altitude	≤5500M
Net Weight	0.5kg
Dimension	1807646mm

Wind Turbine Charge Controller Wiring Diagram

1. Positive and negative terminals of the battery.
2. Green LED indicator, when the system is working normally, the LED will be illuminated.
3. Red LED indicator, when the battery is full, or the controller is in emergency braking state, the LED will be illuminated.
4. Emergency switch, the switch is in - gear, the system is in emergency braking state, and the red LED will be lit, in the O state, the controller is in normal working state.
5. The wind turbine terminal can be connected to the three wires of the wind turbine in turn. If it is a DC fan or a single-phase fan, the fan wiring can be arbitrarily connected to two of the three terminals.
6. RDDLZ wind turbine charge controller is compatible with three-phase, single-phase and DC fans.

Tips: How does a wind turbine charge controller work?

The wind turbine charge controller adjusts and controls the power generated by the wind generator. On the one hand, the adjusted energy is sent to a DC load or an AC load, and on the other hand, the excess energy is used to charge the battery pack according to the battery's characteristic curve. When the power generated cannot meet the load requirements, the controller sends the battery's power to the load. After the battery is fully charged, the controller should control the battery not to be overcharged. When the electric energy stored in the battery is discharged, the controller should control the battery from being over-discharged to protect the battery.
