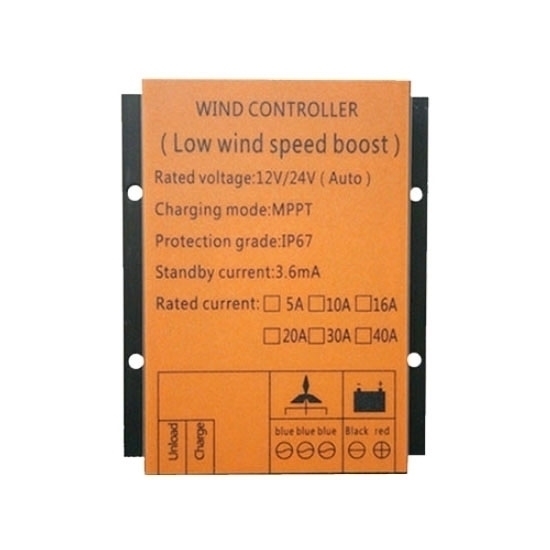

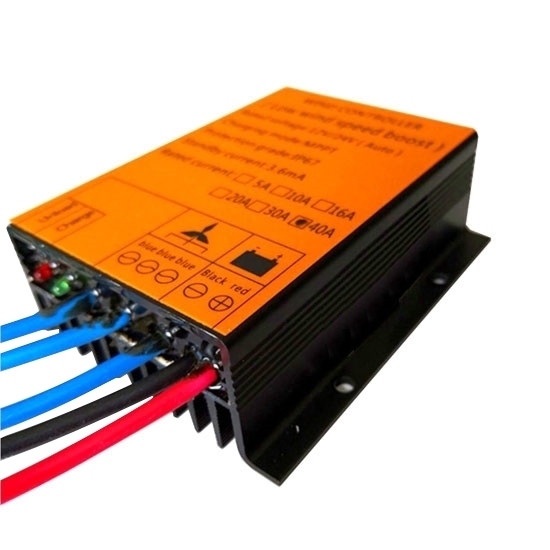

1000W Wind Turbine MPPT Charge Controller, 12V/24V

0 reviews • Write a review

from

$178.46

Ex Tax: $178.46

Stock: In Stock
Model: RDDLZ-WTCMPPT-1000
Weight: 1.00
SKU: RDDLZ-WTCMPPT-1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MPPT wind turbine charge controller for 1 kW wind turbine generator, rated voltage 24 volt, the waterproof design meets the requirements of field use. Diversified function design can form a flexible system to meet the needs of different customers.

Note:

The controller needs to be selected according to the power of the wind turbine and the battery voltage.

Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification:

Model	RDDLZ-WTCMPPT-1000
Rated Voltage	24V
Wind Generator Rated Power	1000W
Protection	Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function	MPPT Charging
Unloading Way	PWM Electrodeless and noiseless unloading
Working Temperature	-20~+60°C 35~85%RH
Dimension	1008515mm
Net Weight	0.4kg

Features
1. High quality technical components guarantee its stability and reliability
2. Anti-water,anti-dust shell make it applicable in various outdoor environment
3. Voltage/current control charging make sure storage batteries are always at the best state of charge.
4. MPPT charging effectively collect power from generator to charge storage batteries.
5. Using PWM to unload redundant electrical energy, thus to protect batteries and make sure safety of generator
6. The body shell using aluminium alloy make it light and good heat dissipation.

Wind Power System Connection Diagram

Tips: Safety notes

1. When installing insulated tools, use insulated tools. Do not use inferior tools.
2. Do not use inferior batteries to prevent leakage or corrosion.
3. Do not use cables that are too thin or of poor quality to avoid leakage or fire.
4. Do not keep the positive and negative terminals of the battery.
5. Do not place the controller in the environment of humidity, dust, rain, severe vibration, corrosion and strong electromagnetic interference. It is strictly prohibited to install and use this controller in a mixed flammable gas environment.
6. It is strictly prohibited to place any flammable, explosive and dangerous materials around the controller.
7. Please keep all symbols on the controller intact, and keep children away from the scene to avoid accidents.
8. Do not open the case of the product itself.
9. When installing the device, make sure to place the terminal block on the bottom of the device to prevent rainwater from pouring into the case.
